R105.0615.1.8 TI25
Inserts
Part number R105061518TI25

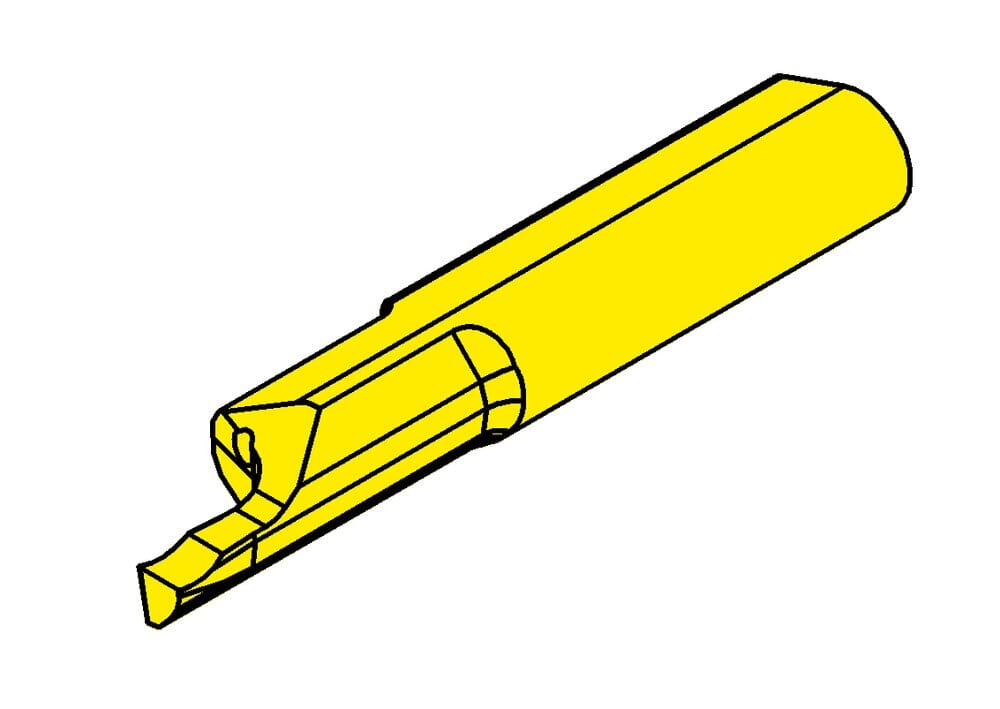

HORN Inserts R105.0615.1.8 TI25 for Turning
Please note:Technical instructions
ISO_SSC
HORN105125$95N$$$$$
Total length (l5)
25 mm
Corner radius (r)
0.05 mm
Width of groove (w)
1.5 mm
Katalog_SSC
105125
Neck length (l2)
10 mm
Smallest axial bore diameter (Da min)
6 mm
Width of blank (b)
7 mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax a)
3 mm
Adjustment dimension cutting center (f)
2 mm
| Downloads | |
|---|---|
| R105_0615_1_8_TI25-DXF.DXF | Download |
| R105_0615_1_8_TI25-STP.STP | Download |
| R105_0615_1_8_TI25-ISO.XML | Download |
| R105_0615_1_8_TI25-DIN.XML | Download |
| Download all files | |
