R105.0810.1.4 TN35
Insert
Part number R105081014TN35

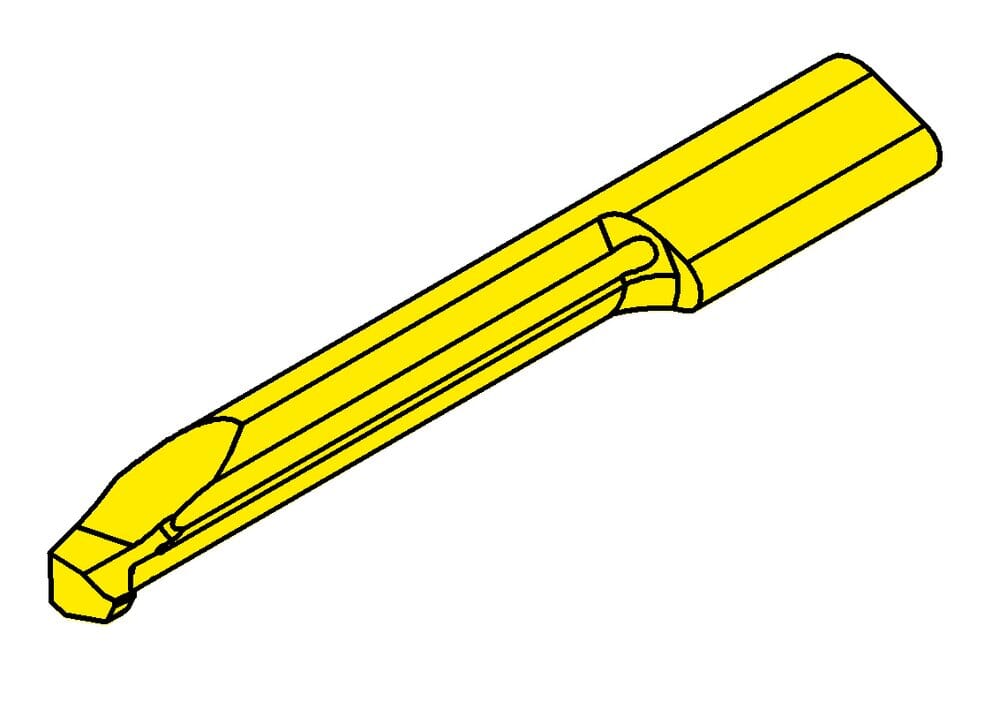

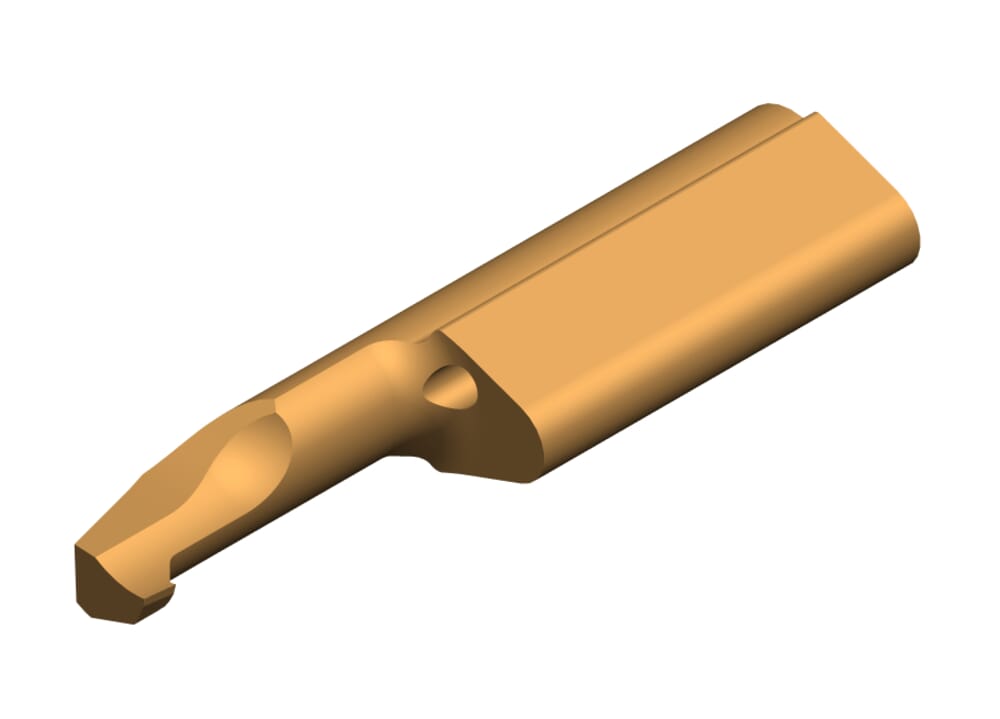

HORN Insert R105.0810.1.4 TN35 for Turning
Please note:Technical instructions
Katalog_SSC
105124
Smallest bore diameter (Dmin)
4 mm
Total length (l5)
25 mm
Setting range radial (f)
1.9 mm
Neck diameter (d)
2.7 mm
Width of groove (w)
1 mm
Neck length (l2)
10 mm
ISO_SSC
HORN105124$95N$$$$$
Depth of pre-groove (t1)
0.2 mm
Width of blank (b)
6.4 mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.7 mm
Head size (a)
3.7 mm
