R105.1019.2.4 TH35
Insert
Part number R105101924TH35

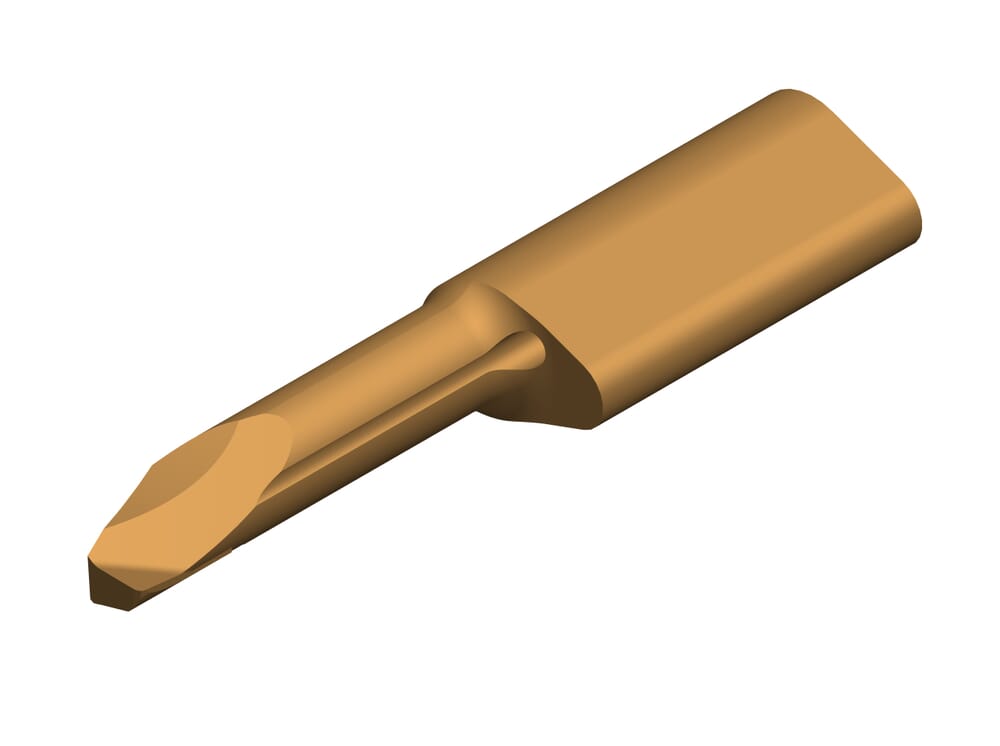

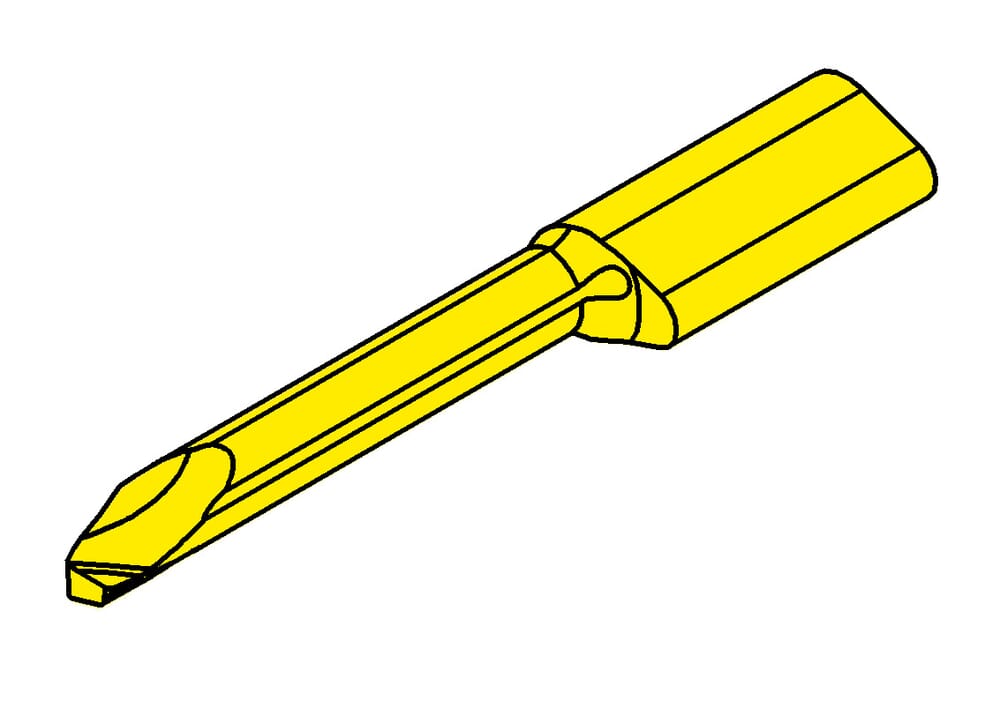

HORN Insert R105.1019.2.4 TH35 for Turning
Please note:Technical instructions
Katalog_SSC
105125
Smallest bore diameter (Dmin)
4 mm
Total length (l5)
30 mm
Setting range radial (f)
1.5 mm
Neck diameter (d)
3.4 mm
Neck length (l2)
15 mm
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7 mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.15 mm
Head size (a)
3.7 mm
Top radius (r)
0.2 mm
