R105.1809.005.2.2 TH35
Insert 105
Part number R105180900522TH35

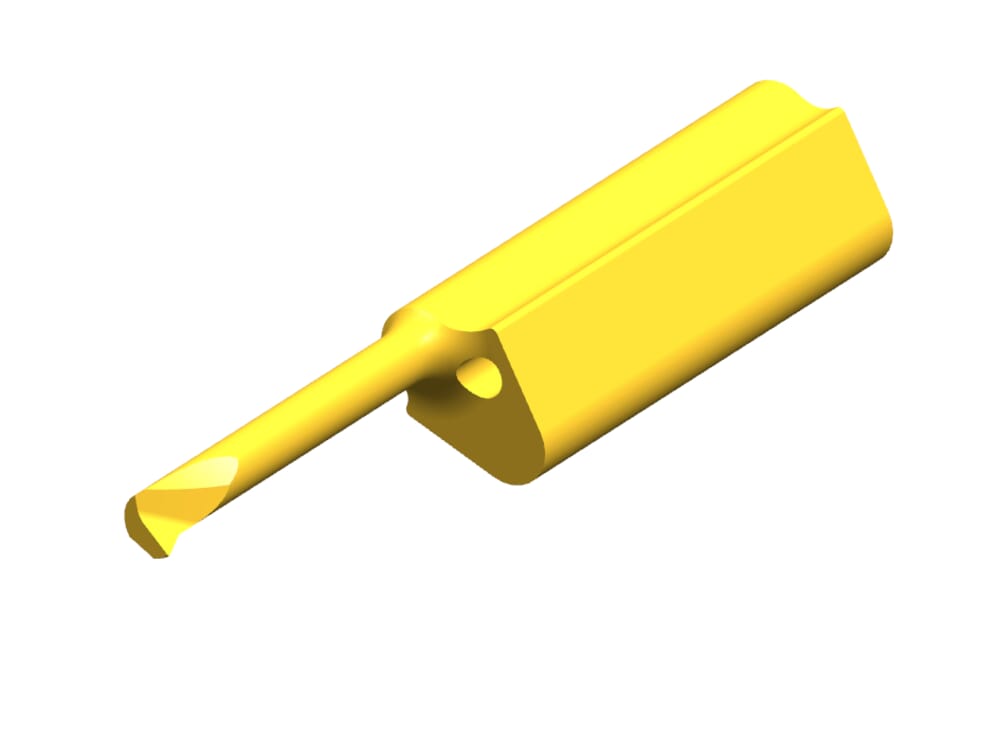

HORN Insert 105 R105.1809.005.2.2 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
2
mm
Total length (l5)
30
mm
Setting range radial (f)
1
mm
Neck diameter (d)
1.6
mm
Katalog_SSC
105123
DIN_SSC
HORN-10512395N
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9
mm
Maximum depth of groove (tmax)
0.15
mm
Head size (a)
1.9
mm
Top radius (r)
0.05
mm
Neck length (l2)
12
mm
