R105.1813.005.2.25 TH35
Insert
Part number R1051813005225TH35

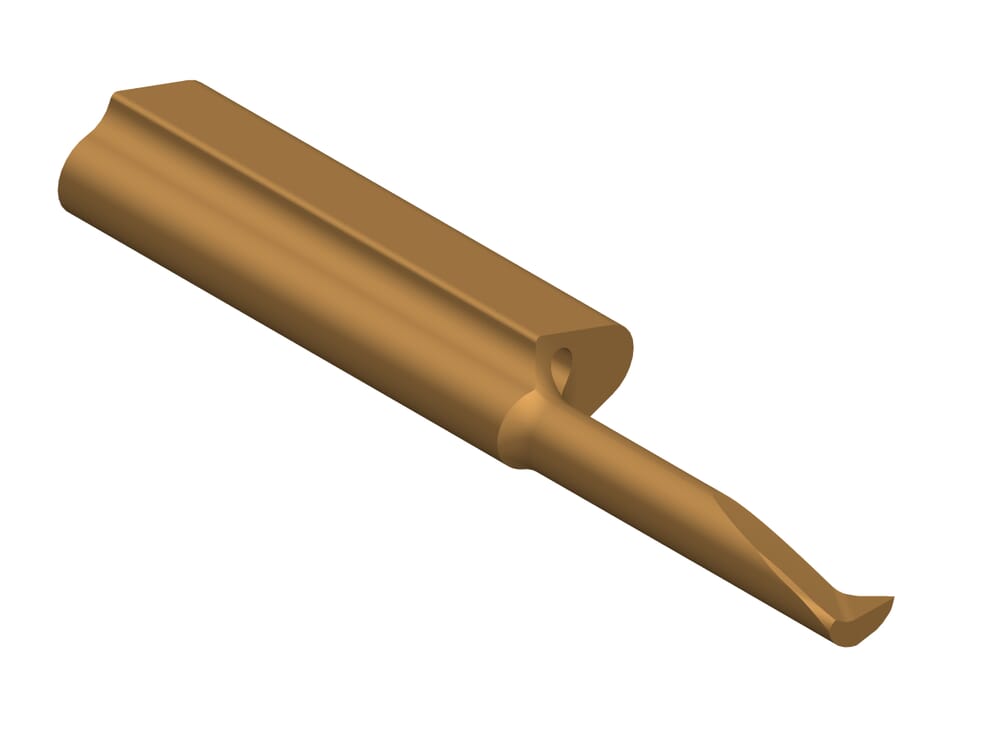

HORN Insert R105.1813.005.2.25 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
2.5
mm
Total length (l5)
30
mm
Setting range radial (f)
1.3
mm
Neck diameter (d)
1.95
mm
Katalog_SSC
105123
DIN_SSC
HORN-10512395N
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9
mm
Maximum depth of groove (tmax)
0.15
mm
Head size (a)
2.3
mm
Top radius (r)
0.05
mm
Neck length (l2)
12
mm
| Downloads | |
|---|---|
| R1051813005225_20230113_233605234.STP | Download |
| R1051813005225_20210626_045600470.DXF | Download |
| Download all files | |
