R105.1813.01.1.3 TI25
Insert
Part number R10518130113TI25

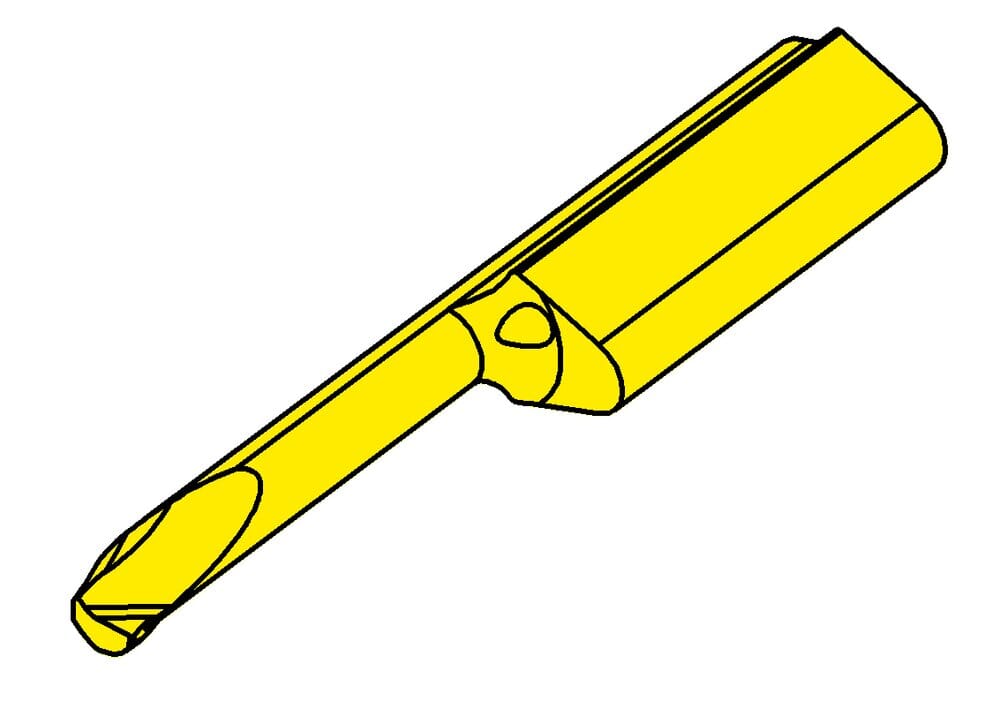

HORN Insert R105.1813.01.1.3 TI25 for Turning
Please note:Technical instructions
Katalog_SSC
105123
Smallest bore diameter (Dmin)
3 mm
Total length (l5)
25 mm
Setting range radial (f)
1.3 mm
Neck diameter (d)
2.3 mm
Neck length (l2)
10 mm
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9 mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.15 mm
Head size (a)
2.6 mm
Top radius (r)
0.1 mm
