R105.1819.04.1.HV4 TH35
Insert
Part number R1051819041HV4TH35

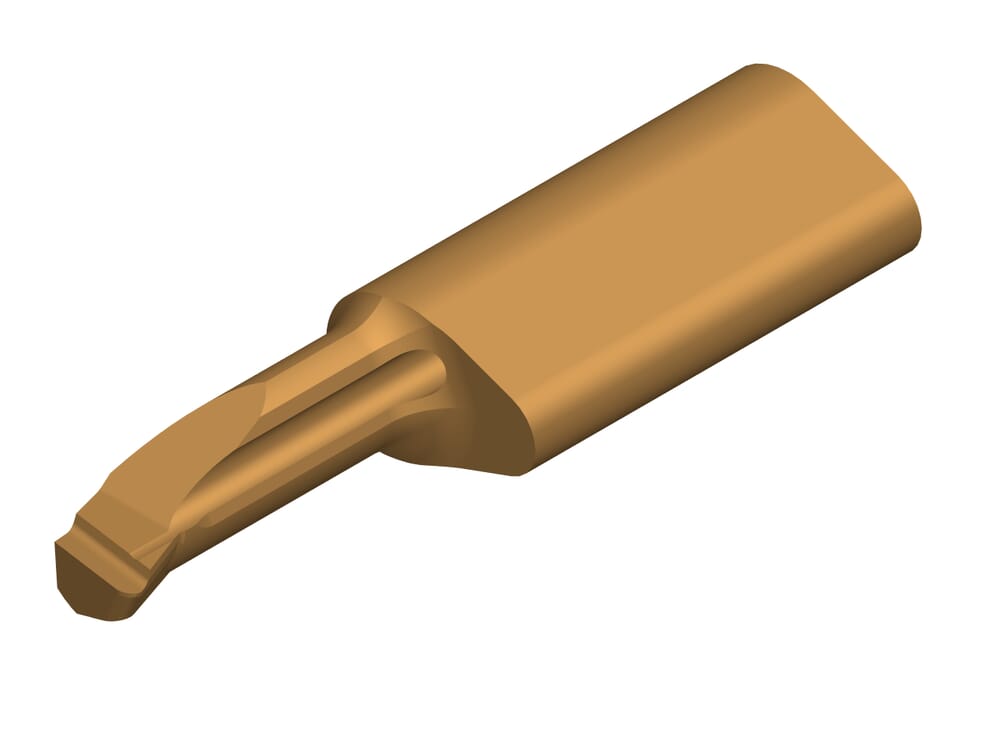

HORN Insert R105.1819.04.1.HV4 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
4
mm
Total length (l5)
25
mm
Setting range radial (f)
1.9
mm
Neck diameter (d)
2.9
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
Maximum depth of groove (tmax)
0.3
mm
Head size (a)
3.7
mm
Top radius (r)
0.4
mm
Neck length (l2)
10
mm
