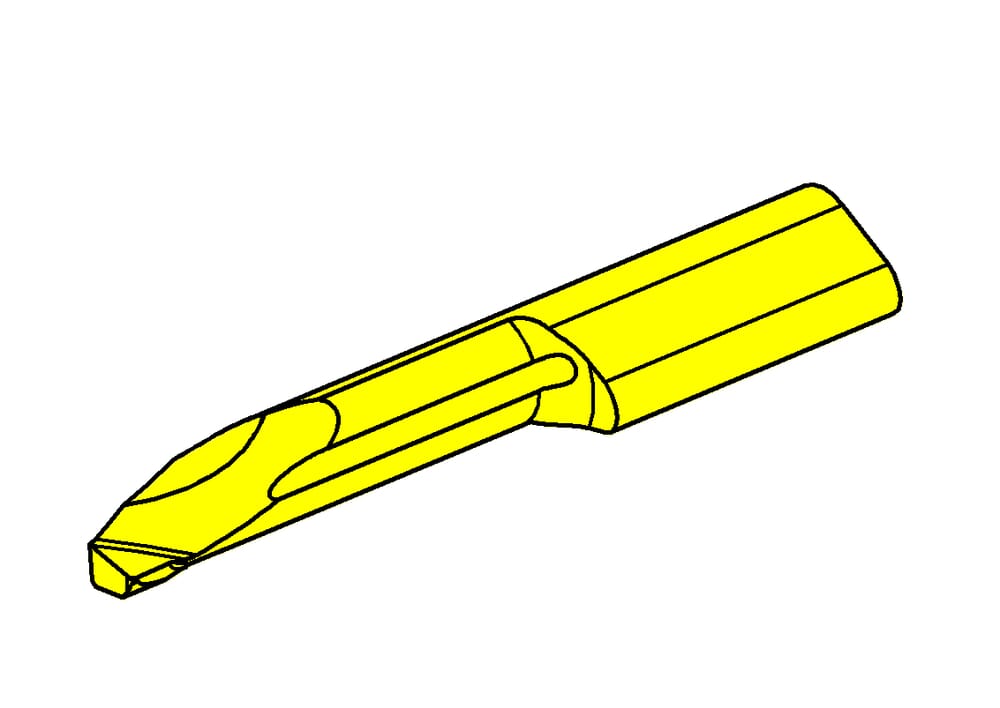

R105.1819.1.H.4 EG35
Inserts
Part number R10518191H4EG35
HORN Inserts R105.1819.1.H.4 EG35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11

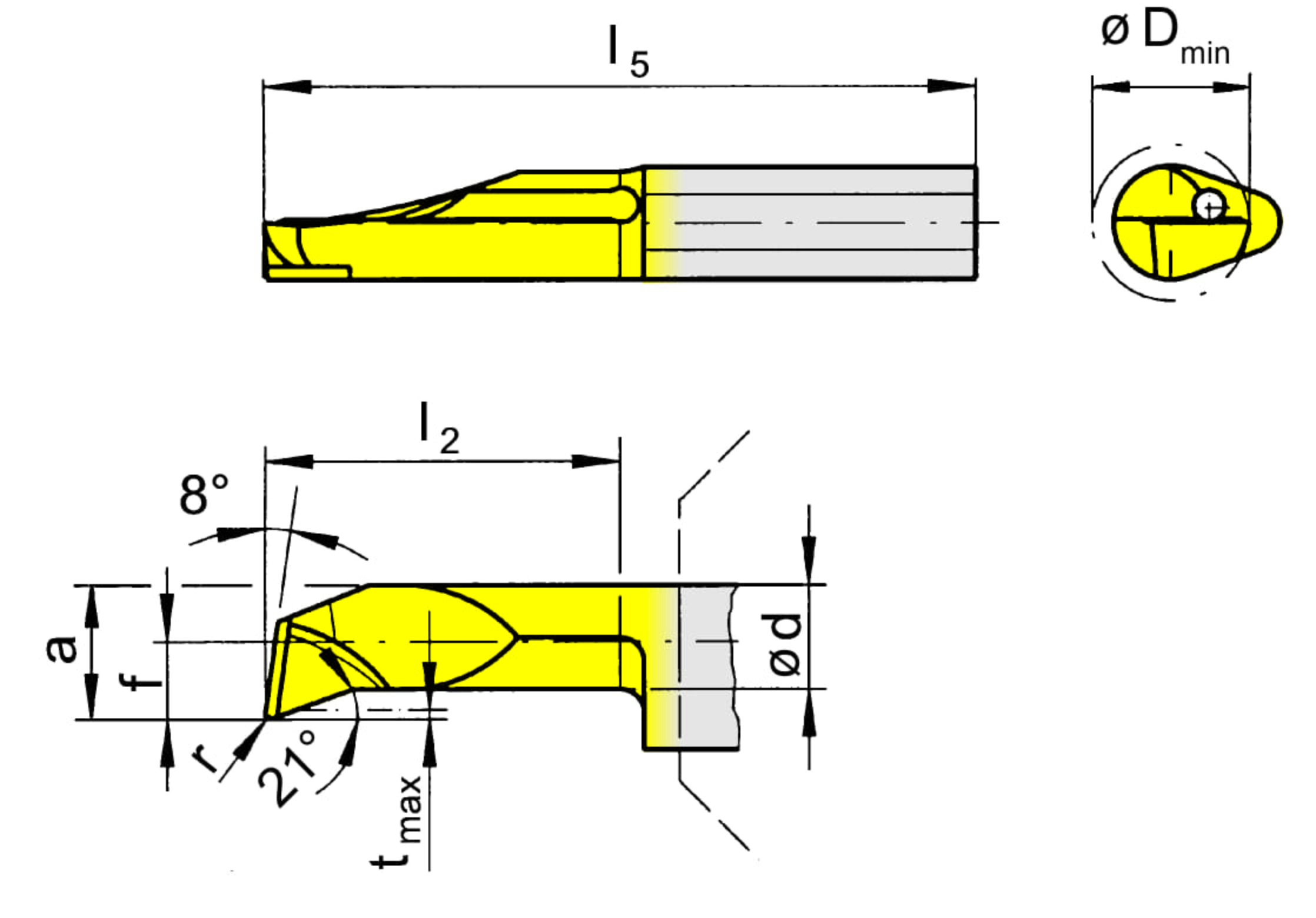

Smallest bore diameter (Dmin)
4
mm
Total length (l5)
25
mm
Setting range radial (f)
1.9
mm
Neck diameter (d)
2.9
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
Maximum depth of groove (tmax)
0.3
mm
Head size (a)
3.7
mm
Top radius (r)
0.2
mm
Neck length (l2)
10
mm
