R105.1833.7.6.2 TI25
Inserts
Part number R1051833762TI25

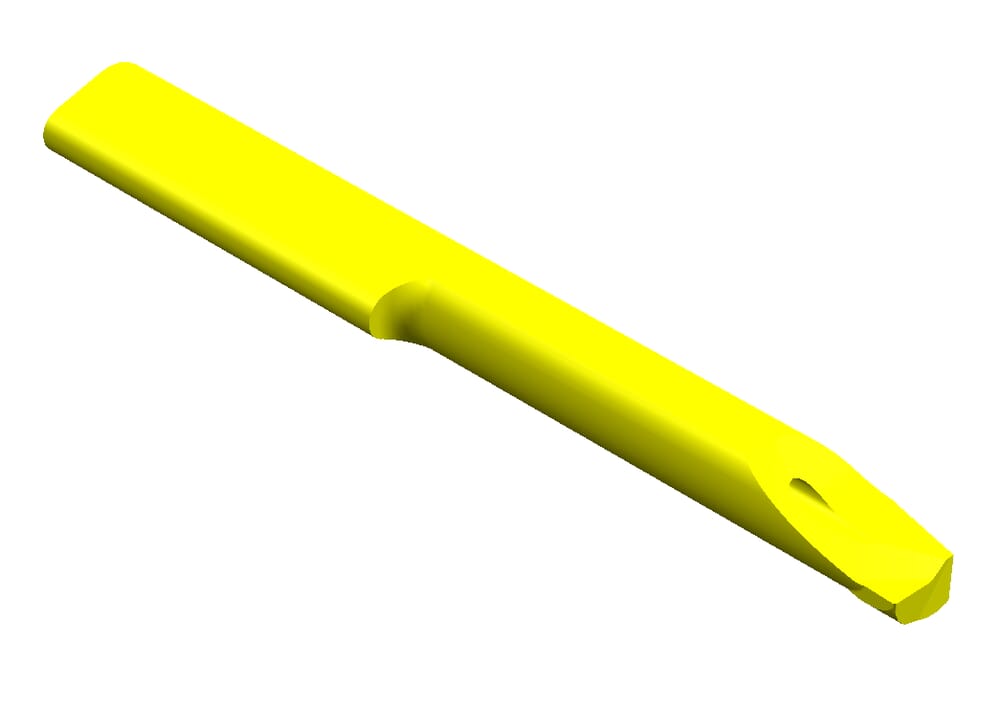

HORN Inserts R105.1833.7.6.2 TI25 for Turning
Please note:Technical instructions
Width of blank (b)
7
mm
Smallest bore diameter (Dmin)
6
mm
Total length (l5)
65
mm
Setting range radial (f)
3.3
mm
Neck diameter (d)
4.9
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Form free angle (α)
21
°
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.3
mm
Head size (a)
5.7
mm
Top radius (r)
0.1
mm
Neck length (l2)
40
mm
