R105.1840.5.H.7 TH35
Insert
Part number R10518405H7TH35

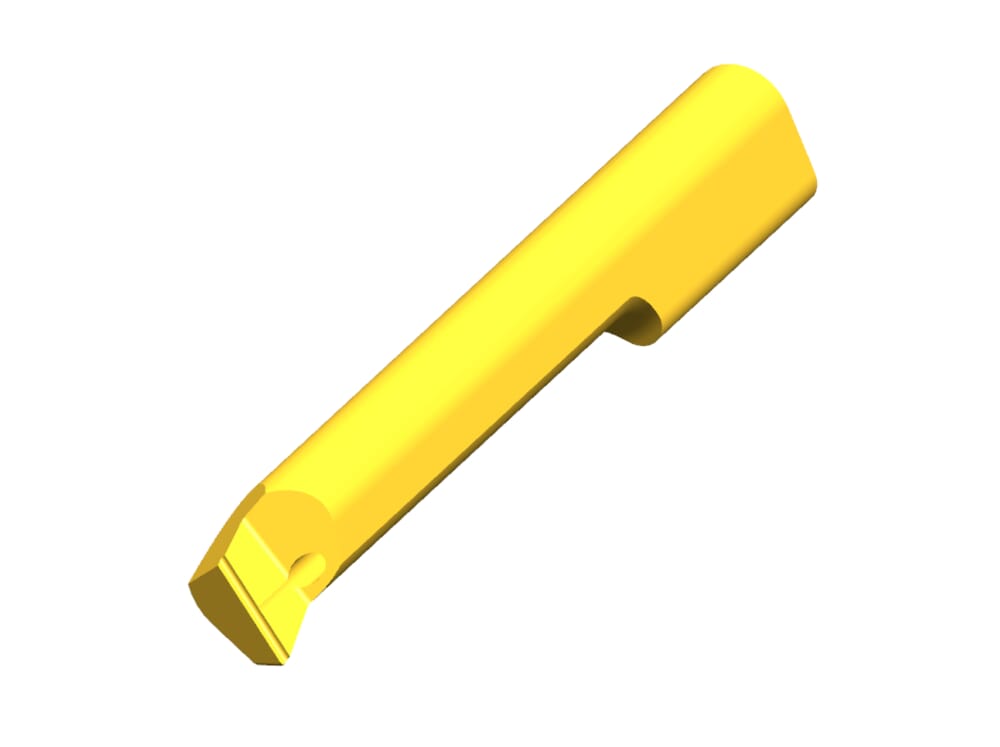

HORN Insert R105.1840.5.H.7 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
7
mm
Total length (l5)
45
mm
Setting range radial (f)
4
mm
Neck diameter (d)
5.2
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7
mm
Maximum depth of groove (tmax)
0.5
mm
Head size (a)
6.4
mm
Top radius (r)
0.2
mm
Neck length (l2)
30
mm
