R105.4713.005.1.3 EG35
Insert
Part number R105471300513EG35

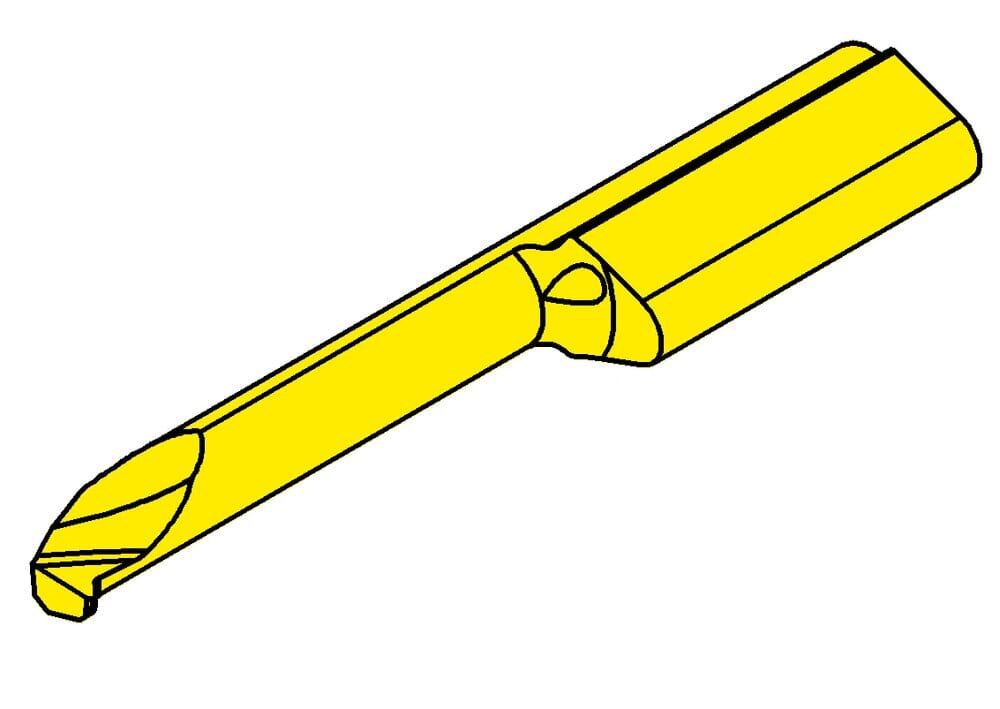

HORN Insert R105.4713.005.1.3 EG35 for Turning
Please note:Technical instructions
Katalog_SSC
105123
Smallest bore diameter (Dmin)
3 mm
Total length (l5)
25 mm
Setting range radial (f)
1.3 mm
Neck diameter (d)
2 mm
Neck length (l2)
10 mm
ISO_SSC
HORN105123$95N$$$$$
Width of blank (b)
5.9 mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.4 mm
Head size (a)
2.6 mm
Top radius (r)
0.05 mm
| Downloads | |
|---|---|
| R105_4713_005_1_3_EG35-DXF.DXF | Download |
| R105_4713_005_1_3_EG35-STP.STP | Download |
| R105_4713_005_1_3_EG35-ISO.XML | Download |
| R105_4713_005_1_3_EG35-DIN.XML | Download |
| Download all files | |
