R105.4723.2.5 TH35
insert
Part number R105472325TH35

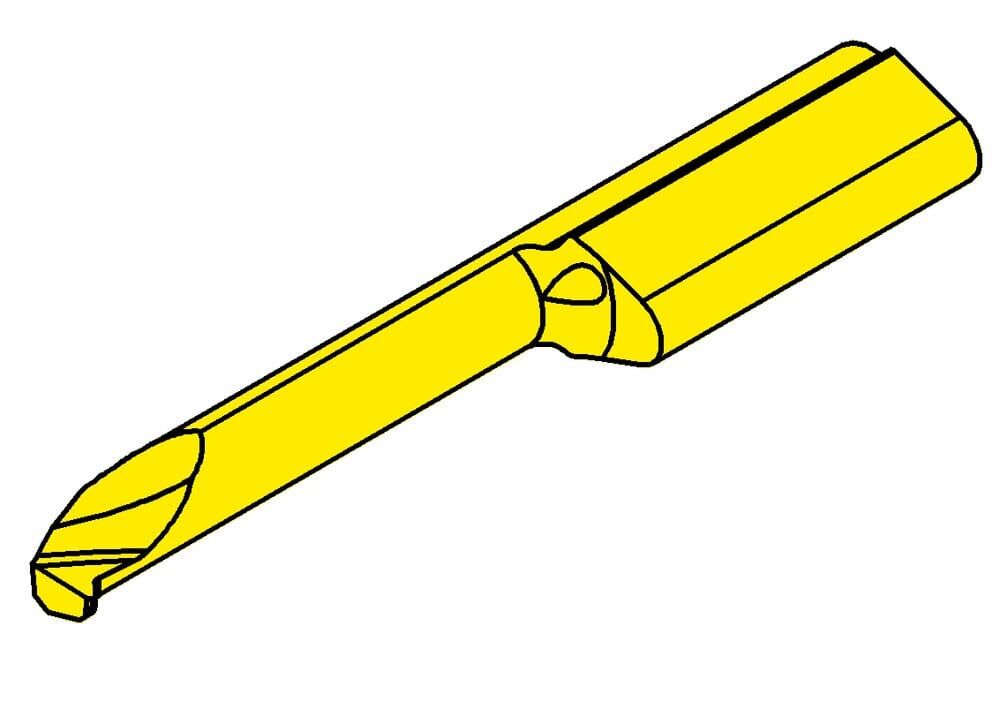

HORN insert R105.4723.2.5 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
Smallest bore diameter (Dmin)
5 mm
Total length (l5)
30 mm
Setting range radial (f)
2.3 mm
Neck diameter (d)
3.7 mm
Katalog_SSC
105125
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7 mm
Maximum depth of groove (tmax)
0.8 mm
Head size (a)
4.7 mm
Top radius (r)
0.15 mm
Neck length (l2)
15 mm
| Downloads | |
|---|---|
| R105_4723_2_5_TH35-DXF.DXF | Download |
| R105_4723_2_5_TH35-STP.STP | Download |
| R105_4723_2_5_TH35-ISO.XML | Download |
| R105_4723_2_5_TH35-DIN.XML | Download |
| Download all files | |
