R105.4723.2.5 TH35
insert
Part number R105472325TH35
HORN insert R105.4723.2.5 TH35 for Turning
Please note:Technical instructions
Cutting edge count (CEDC)
1

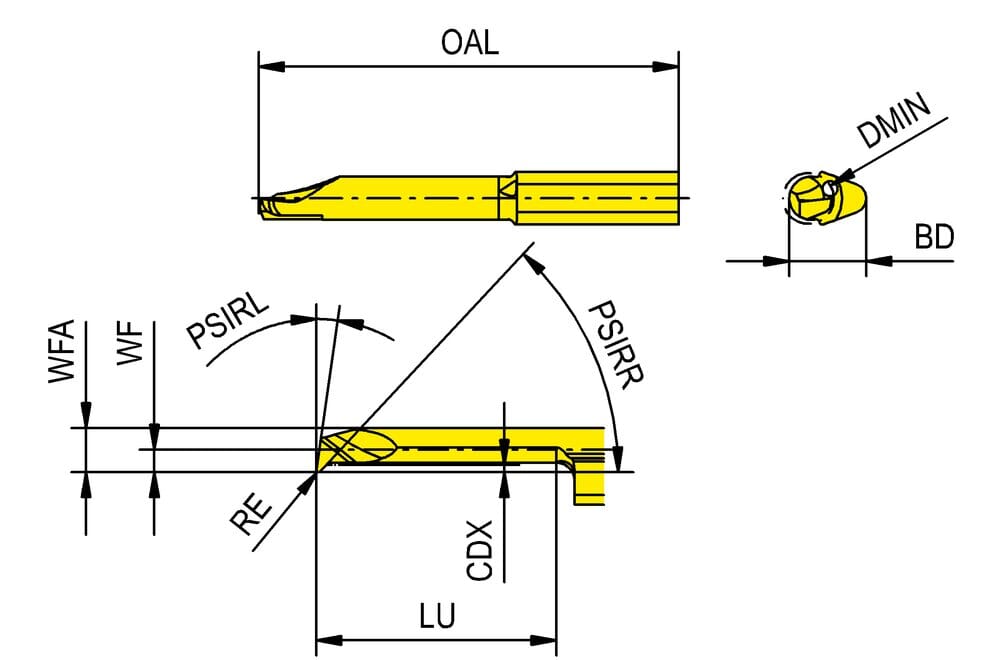

Dimension a at working width (WFA)
4.7 mm
Funktional width (WF)
2.3 mm
Corner radius (RE)
0.15 mm
Cutting edge angle major right hand (PSIRR)
48 °
Cutting edge angle major left hand (PSIRL)
8 °
Overall length (OAL)
30 mm
Usable length (LU)
15 mm
Minimum bore diameter (DMIN)
5 mm
Cutting depth maximum (CDX)
0.8 mm
Body diameter (BD)
7 mm
