R105.BO.50.20.075.2 EG35
Insert
Part number R105BO50200752EG35

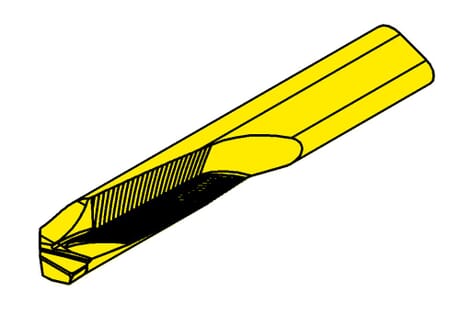

HORN Insert R105.BO.50.20.075.2 EG35 for Turning
Please note:Technical instructions
Katalog_SSC
105125
Smallest bore diameter (Ds)
5 mm
Total length (l5)
31 mm
Setting range radial (f)
2.5 mm
Neck diameter (d)
4.4 mm
Neck length (l2)
7.5 mm
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7 mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.1 mm
Head size (a)
4.7 mm
Top radius (r)
0.2 mm
| Downloads | |
|---|---|
| R105_BO_50_20_075_2_EG35-DXF.DXF | Download |
| R105_BO_50_20_075_2_EG35-STP.STP | Download |
| R105_BO_50_20_075_2_EG35-ISO.XML | Download |
| R105_BO_50_20_075_2_EG35-DIN.XML | Download |
| Download all files | |
