R110.0200.5.8 TN35
Insert
Part number R110020058TN35

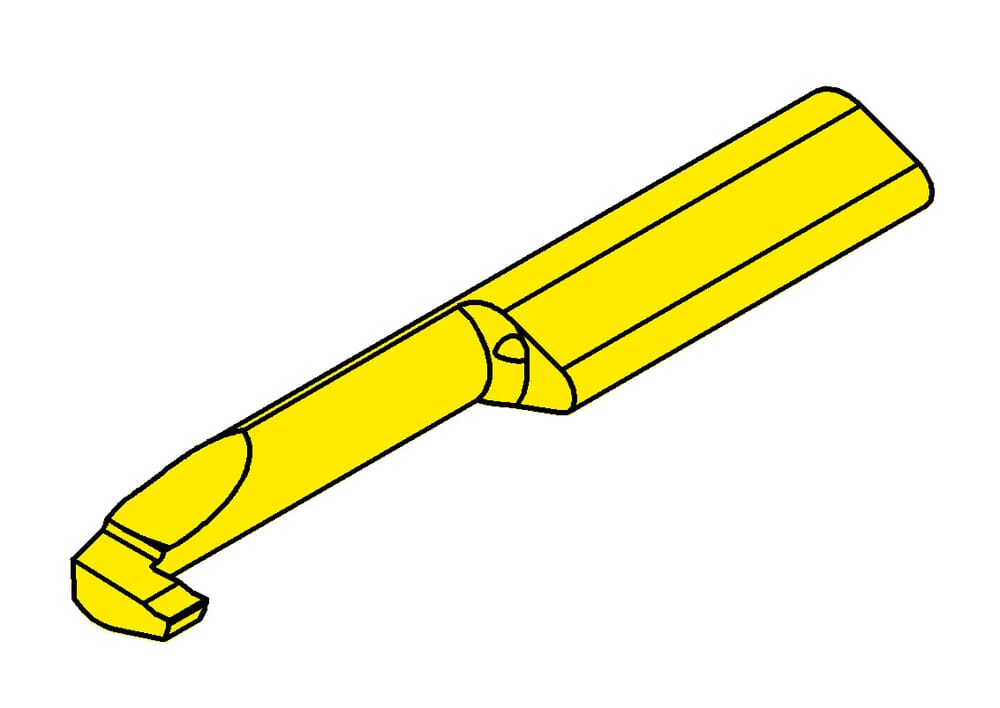

HORN Insert R110.0200.5.8 TN35 for Turning
Please note:Technical instructions
Width of groove (w)
2 mm
Smallest bore diameter (Dmin)
8 mm
Total length (l5)
60 mm
Setting range radial (f)
4 mm
Neck diameter (d)
4.2 mm
Neck length (l2)
30 mm
Katalog_SSC
110260
ISO_SSC
HORN110260$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
2.8 mm
Head size (a)
7.4 mm
| Downloads | |
|---|---|
| R110_0200_5_8_TN35-DXF.DXF | Download |
| R110_0200_5_8_TN35-STP.STP | Download |
| R110_0200_5_8_TN35-ISO.XML | Download |
| R110_0200_5_8_TN35-DIN.XML | Download |
| Download all files | |
