R111.4545.02 TN35

Inserts

Part number R111454502TN35

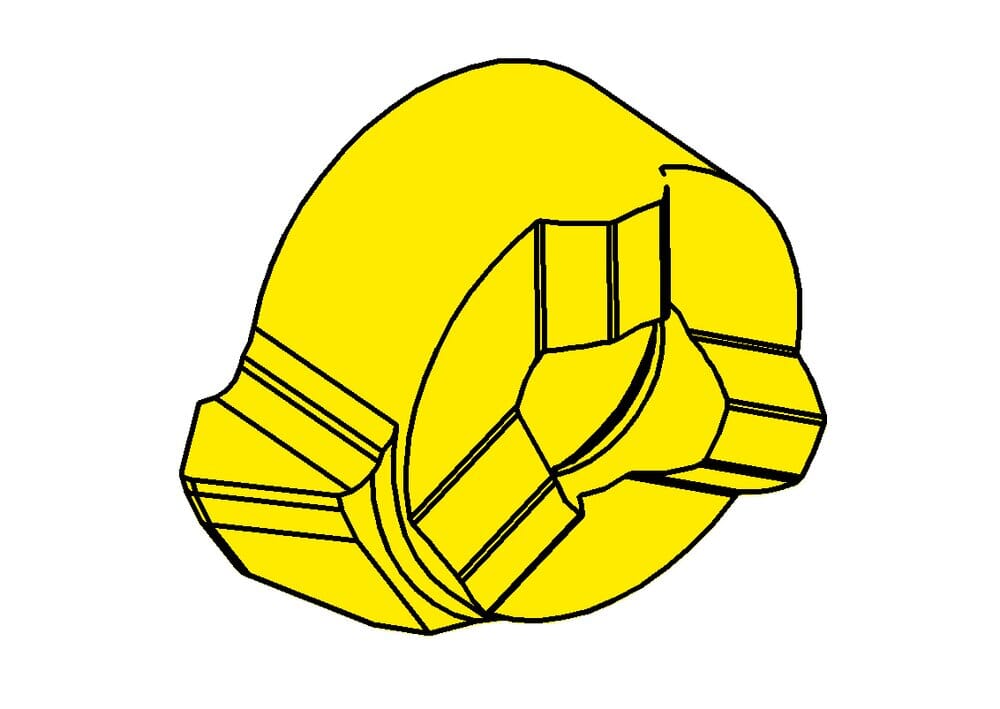

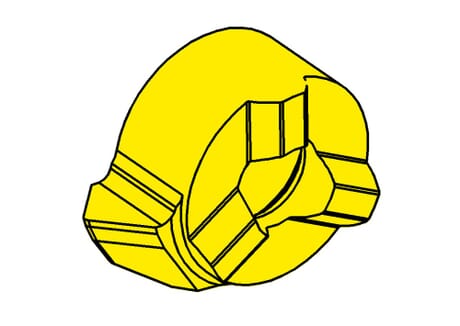

HORN Inserts R111.4545.02 TN35 for Turning

Setting range radial (f)

6.7 mm

Smallest bore diameter (Dmin)

11 mm

Corner radius (r)

0.2 mm

Setting length (E)

2.4 mm

Tooth diameter, head diameter (d)

8 mm

Cutting insert width (a)

10.7 mm

Cutting diameter (Ds)

13.4 mm

Cutting insert thickness, setting length complete (s)

4.15 mm

Maximum milling depth/ depth of groove (tmax)

1.5 mm

Katalog_SSC

111080R

ISO_SSC

HORN111080$84R$$$$$

eclass-shortcut

21-18-20-11

Number of teeth (Z)

1 St.
