R114.VR15.00.BA CH1G

Insert

Part number R114VR1500BACH1G

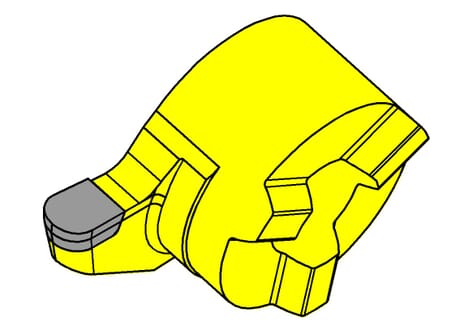

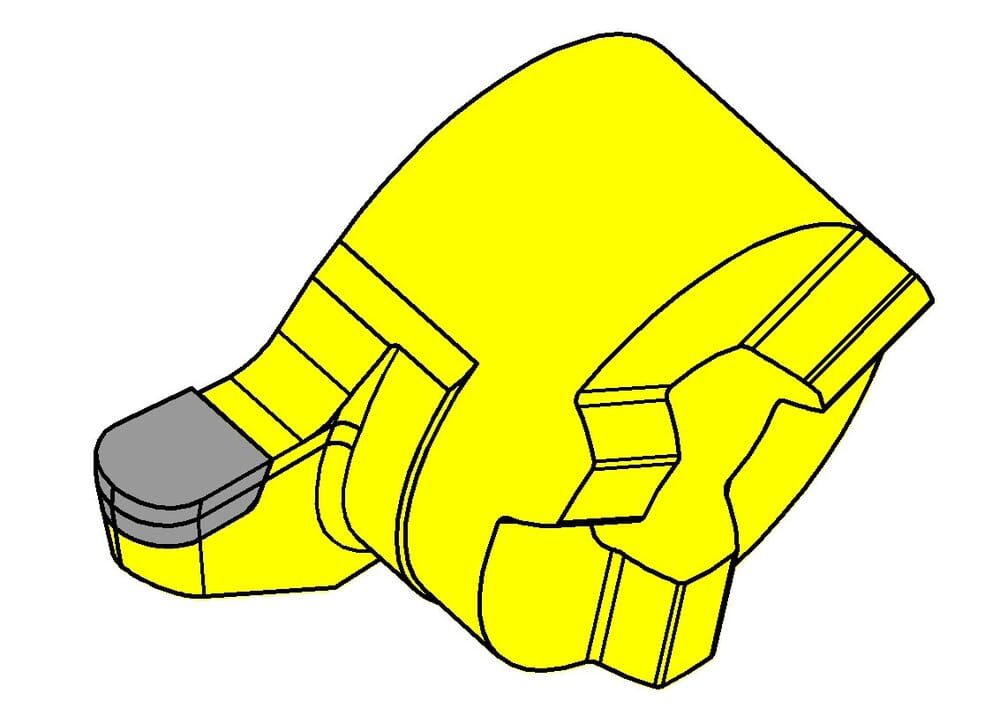

HORN Insert R114.VR15.00.BA CH1G for Turning

ISO_SSC

HORN114090$84R$$$$$

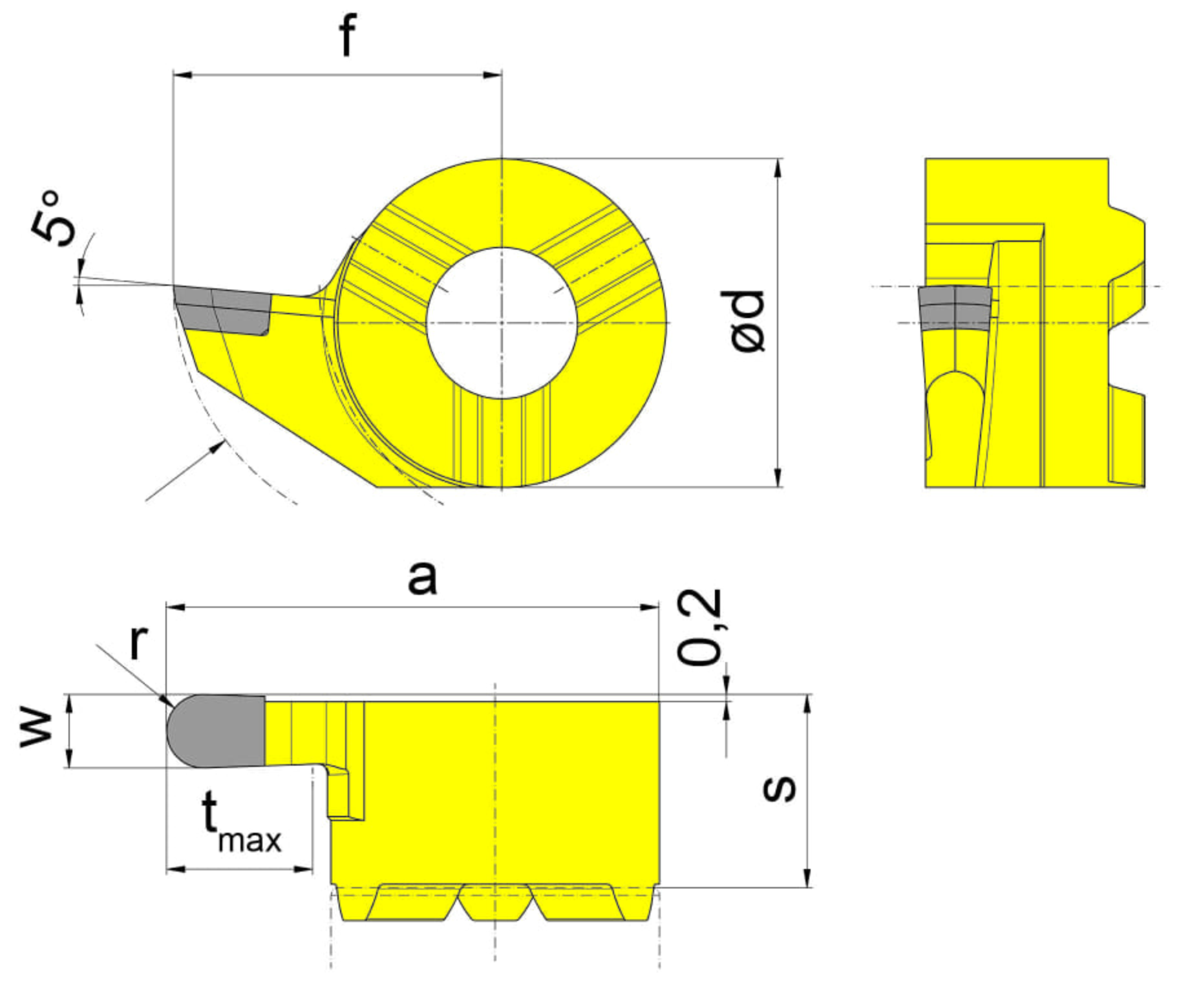

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.3 mm

Radius, full-radius (r)

1.5 mm

Tooth diameter, head diameter (d)

9 mm

Setting range radial (f)

9 mm

Width of groove (w)

3 mm

Katalog_SSC

114090R

DIN_SSC

HORN-11409084R

full-radius-met

1.5 mm

Maximum depth of groove (tmax)

4 mm

Head size (a)

13.5 mm
