R114.VR30.H5.P PD75

Insert

Part number R114VR30H5PPD75

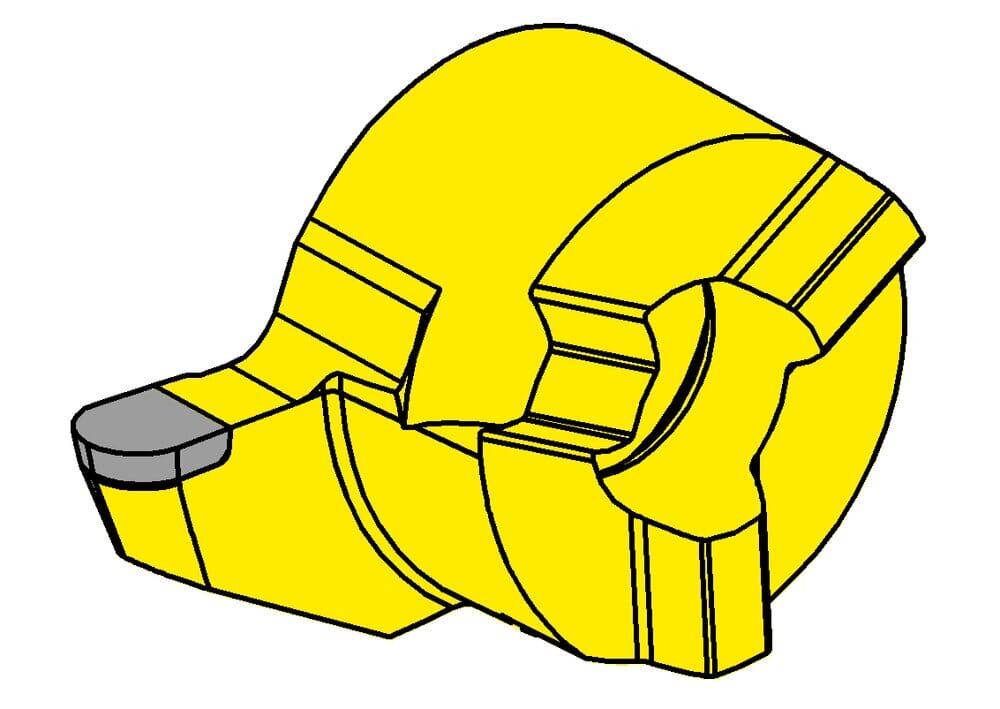

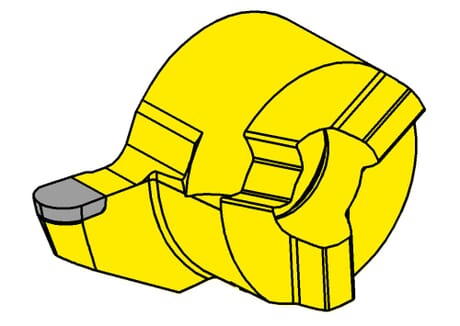

HORN Insert R114.VR30.H5.P PD75 for Turning

Width of groove (w)

3 mm

Smallest bore diameter (Dmin)

14 mm

Cutting insert height, Cutting insert thickness (s)

5.3 mm

Tooth diameter, head diameter (d)

9 mm

Setting range radial (f)

9 mm

Head size (a)

13.5 mm

Katalog_SSC

114090R

ISO_SSC

HORN114090$84R$$$$$

eclass-shortcut

21-18-20-11

Full radius (r)

1.5 mm

Maximum depth of groove (tmax)

4 mm
