RNK224.3215.4.05.IK

Cartridge

ABSTECHEN_20210506_153854505.EPS AUSSEN_EINSTECHEN.EPS IK_VON_OBEN_UND_UNTEN.EPS

Part number RNK2243215405IK

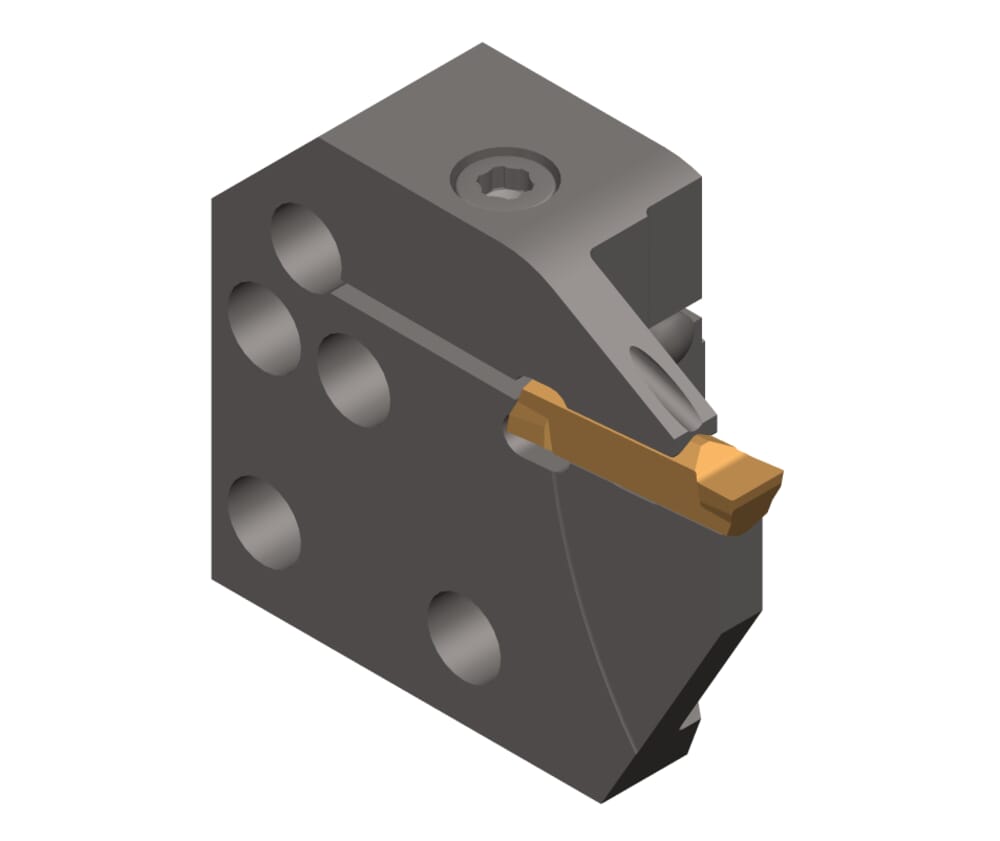

HORN Cartridge RNK224.3215.4.05.IK for Turning

Please note:Technical instructions

DIN_CCTWS
HORN-224050058N
Width of groove (w)
5 mm
Katalog_CCTMS
220001
ISO_CCTMS
HORN22000193$$
DIN_CCTMS
HORN-22000193
Katalog_CCTWS
224058
Adjustment dimension cutting center (f2)
13.9 mm
ISO_CCTWS
HORN224050058N$$$$$
Adjustment dimension of system cassette formula (f3)
f2+w/2
clamping-range-max-met
5.1 mm
clamping-range-min-met
4.4 mm
Maximum workpiece diameter (Dmax)
80 mm
Maximum depth of groove (tmax)
18 mm
Length of unit cassette to cutting edge (lK)
31 mm
Cassette thickness (b)
15.95 mm
