RS274012003M0_PICTO.TIF
RS274012003M0_PICTO.TIF RS274015004M0.TIF

RS274.0150.04.M0 TH35

Insert

KOPIERDREHEN.EPS GEOMETRIE_M0.EPS ABSTECHEN_20210506_153854505.EPS EINSTECHEN.EPS TEILSCHNITT.EPS LAENGSDREHEN.EPS

Part number RS274015004M0TH35

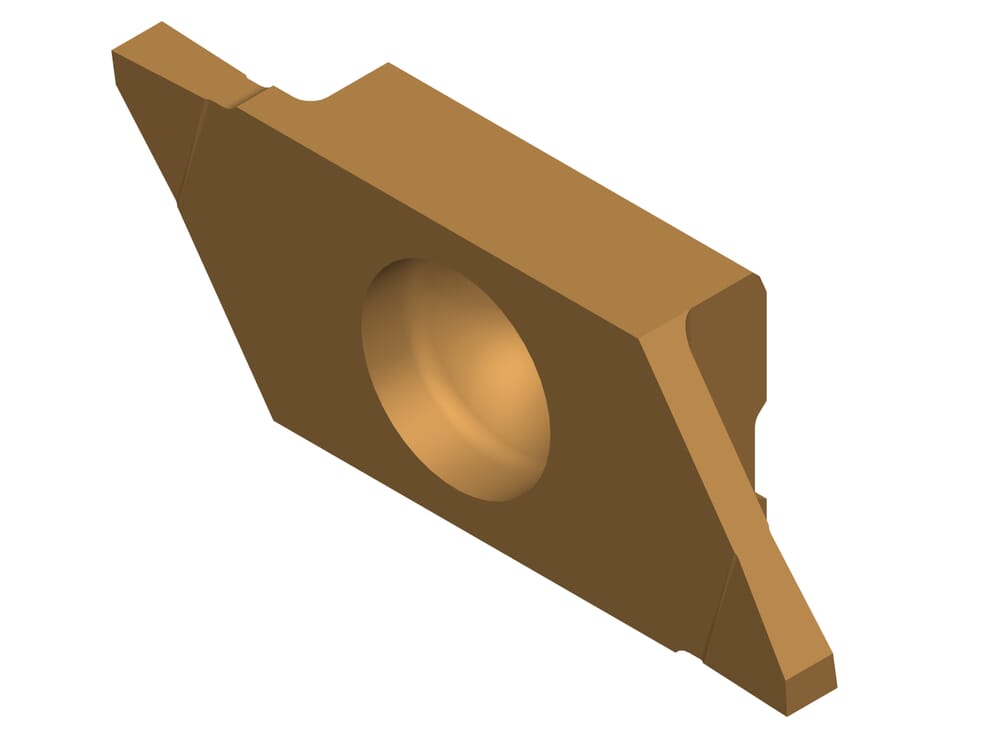

HORN Insert RS274.0150.04.M0 TH35 for Turning

Please note:Technical instructions

Maximum depth of groove (tmax)
4 mm
Cutting angle (γ)
0 °
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
1.5 mm
Downloads
RS274015004M0_20240116_172714859.STP Download
RS274015004M0_20211124_201107522.DXF Download
Download all files
