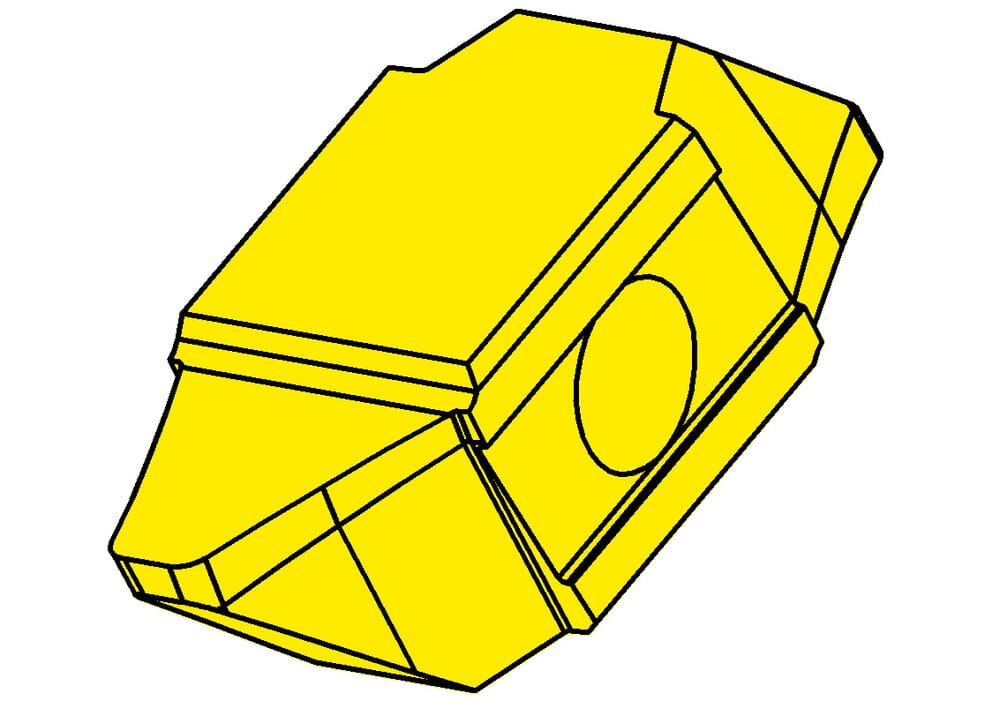

RS279.3972.400.2L AS45

Indexable insert

Part number RS27939724002LAS45

HORN Indexable insert RS279.3972.400.2L AS45 for Milling

Please note:Technical instructions

Katalog_SSC

279105R

Cutting insert height, Cutting insert thickness (s)

10.5 mm

Setting length (E1)

5.25 mm

Form (Form)

Maximum milling depth (tmax)

8.4 mm

Number of teeth (Z)

2 St.

ISO_SSC

HORN279105000R$$$$$

Number of teeth gear wheel maximum (zmax)

16 St.

Number of teeth gear wheel minimum (zmin)

14 St.

Module (Modul)

4 mm

eclass-shortcut

21-18-20-03

Downloads
RS279_3972_400_2L_AS45-DXF.DXF	Download
RS279_3972_400_2L_AS45-ISO.XML	Download
RS279_3972_400_2L_AS45-STP.STP	Download
RS279_3972_400_2L_AS45-DIN.XML	Download
Download all files
