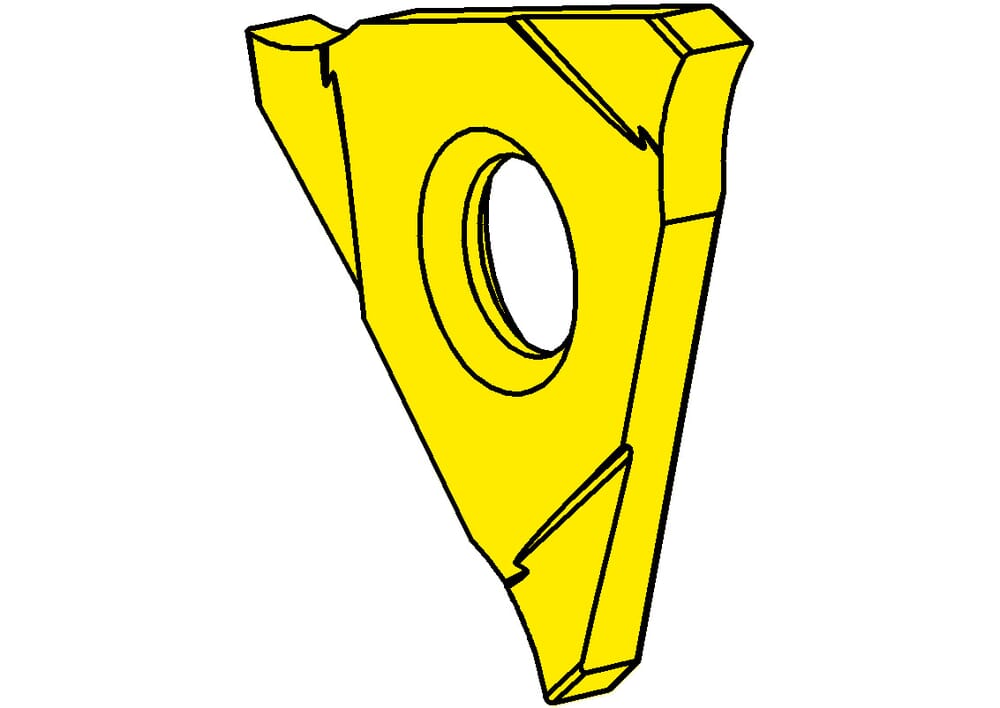

RS310.4023.00 IG35
Indexable insert
Part number RS310402300IG35
HORN Indexable insert RS310.4023.00 IG35 for Milling
Please note:Technical instructions
ISO_SSC
HORN310023101R$$$$$
Katalog_SSC
310023R
cutting-width-met
4 mm
Cutting insert thickness (Plant to cutting edge) (bs)
2.3 mm
Plate thickness without cutting edge (s)
2.2 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| RS310_4023_00_IG35-DIN.XML | Download |
| RS310_4023_00_IG35-DXF.DXF | Download |
| RS310_4023_00_IG35-STP.STP | Download |
| RS310_4023_00_IG35-ISO.XML | Download |
| Download all files | |
