S117.1200.03.14.A1 AN45

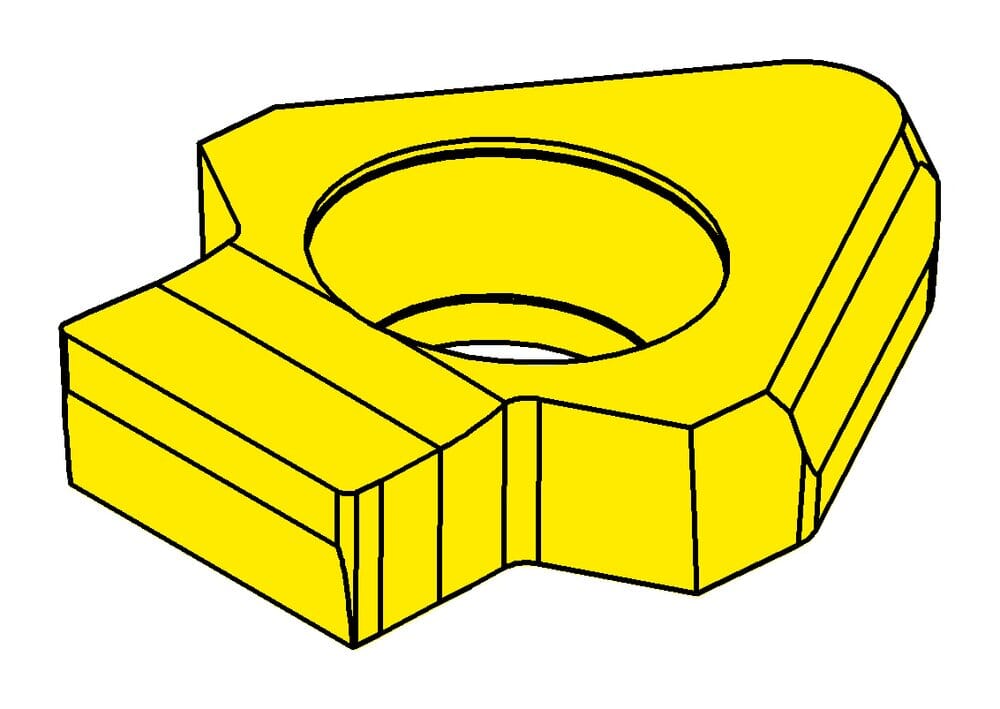

117 style broach insert - A1 geometry

Part number S11712000314A1AN45

HORN 117 style broach insert - A1 geometry S117.1200.03.14.A1 AN45 for Broaching

Cutting width (w)

12.01 mm

Smallest bore diameter (Dmin)

38 mm

Total length (l)

20.7 mm

Corner radius (r)

0.3 mm

Nominal range (Nw)

12 mm

Form (Form)

Katalog_SSC

117D605

ISO_SSC

HORN117D61050N$$$$$

eclass-shortcut

21-18-20-11

Cutting insert center from the middle (f)

11.2 mm

Maximum depth of groove (tmax)

5.9 mm
