S209.0015.KF3 AS45
Insert
Part number S2090015KF3AS45

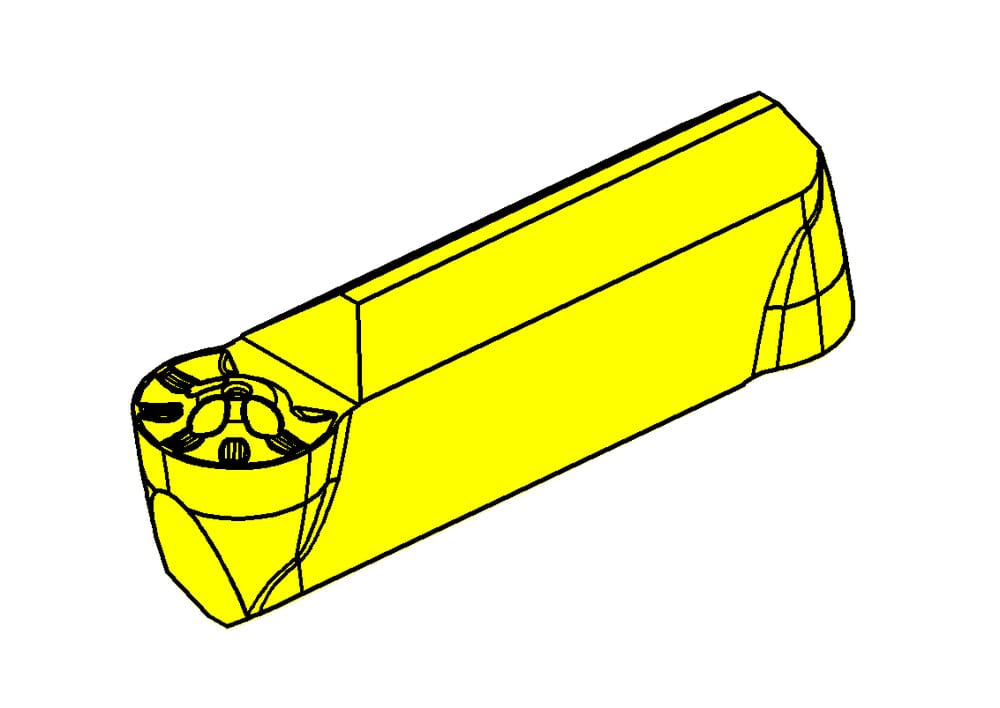

HORN Insert S209.0015.KF3 AS45 for Turning
Please note:Technical instructions

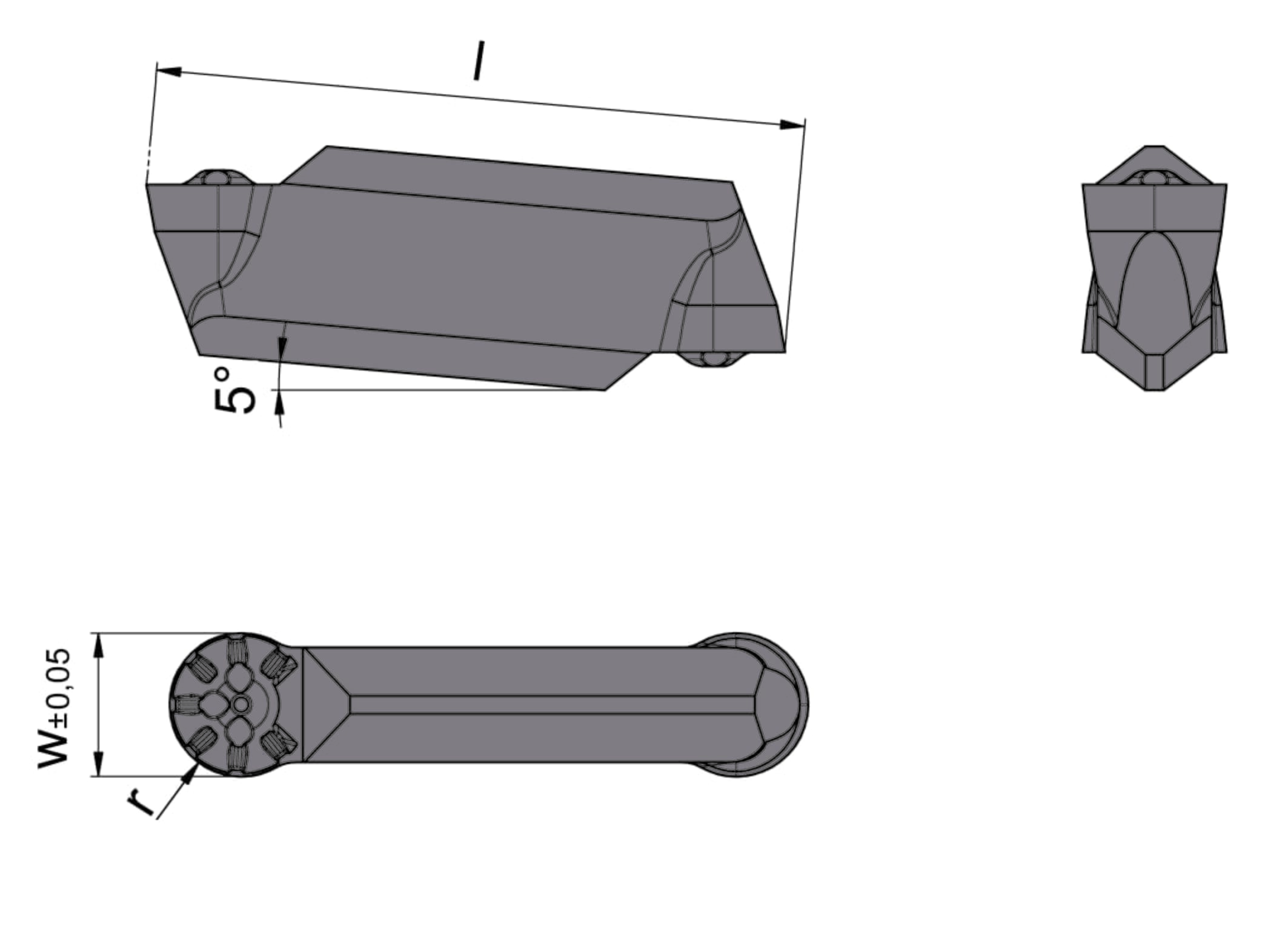

Full radius (r)
1.5
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN209300058N$$$$$
DIN_SSC
HORN-209300058N
Katalog_SSC
20930
Plating seat size (Größe)
30
Width of groove (w)
3
mm
Total length (l)
10
mm
| Downloads | |
|---|---|
| S2090015KF3_20210630_132525311.STP | Download |
| S2090015KF3.DXF | Download |
| Download all files | |
