S224.0020.K4 AS66
Insert
Part number S2240020K4AS66

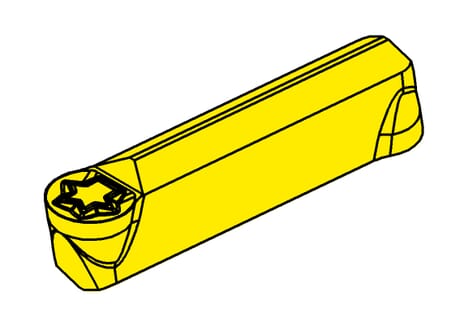

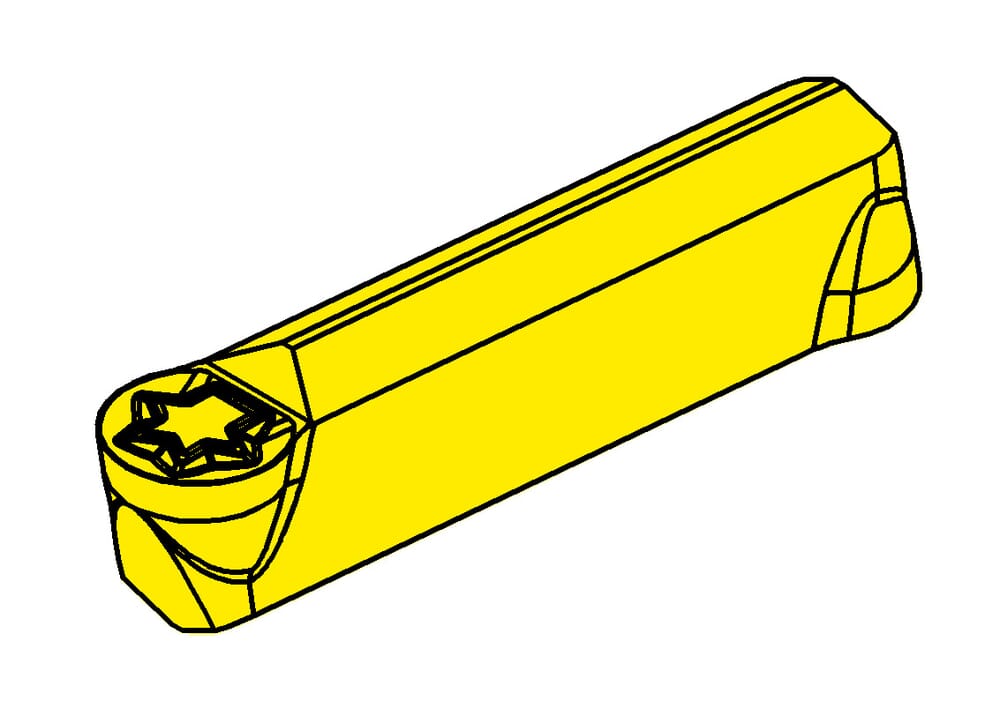

HORN Insert S224.0020.K4 AS66 for Turning
Please note:Technical instructions
Full radius (r)
2 mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN224040058N$$$$$
Katalog_SSC
224048
Plating seat size (Größe)
4
Width of groove (w)
4 mm
| Downloads | |
|---|---|
| S224_0020_K4_AS66-DXF.DXF | Download |
| S224_0020_K4_AS66-STP.STP | Download |
| S224_0020_K4_AS66-ISO.XML | Download |
| S224_0020_K4_AS66-DIN.XML | Download |
| Download all files | |
