back to products

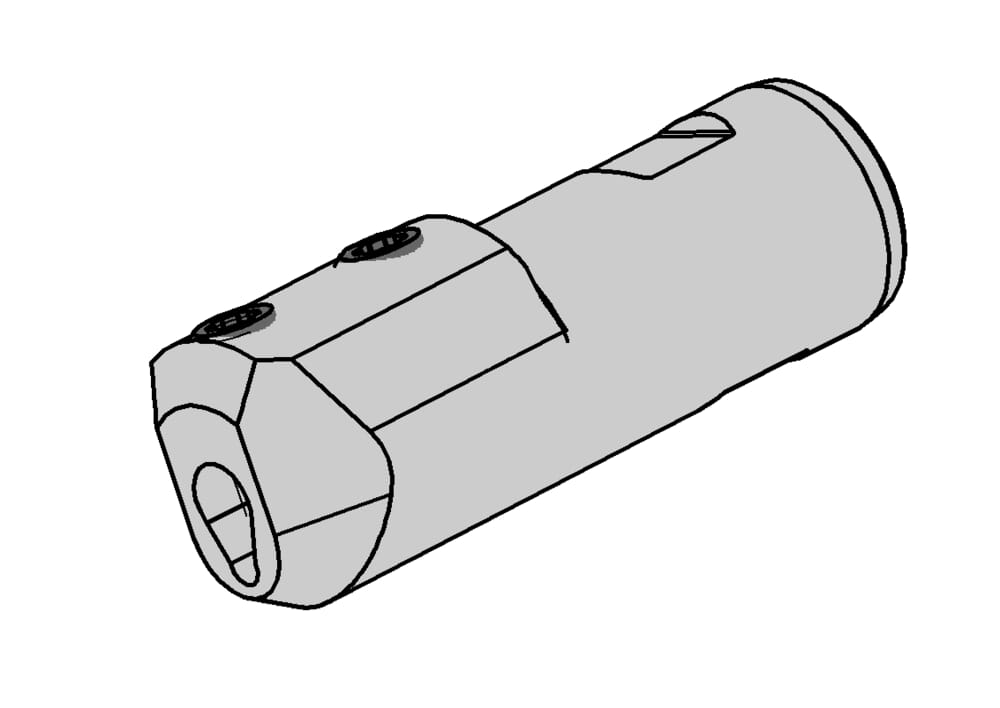

B1050016U102_PICTO.TIF

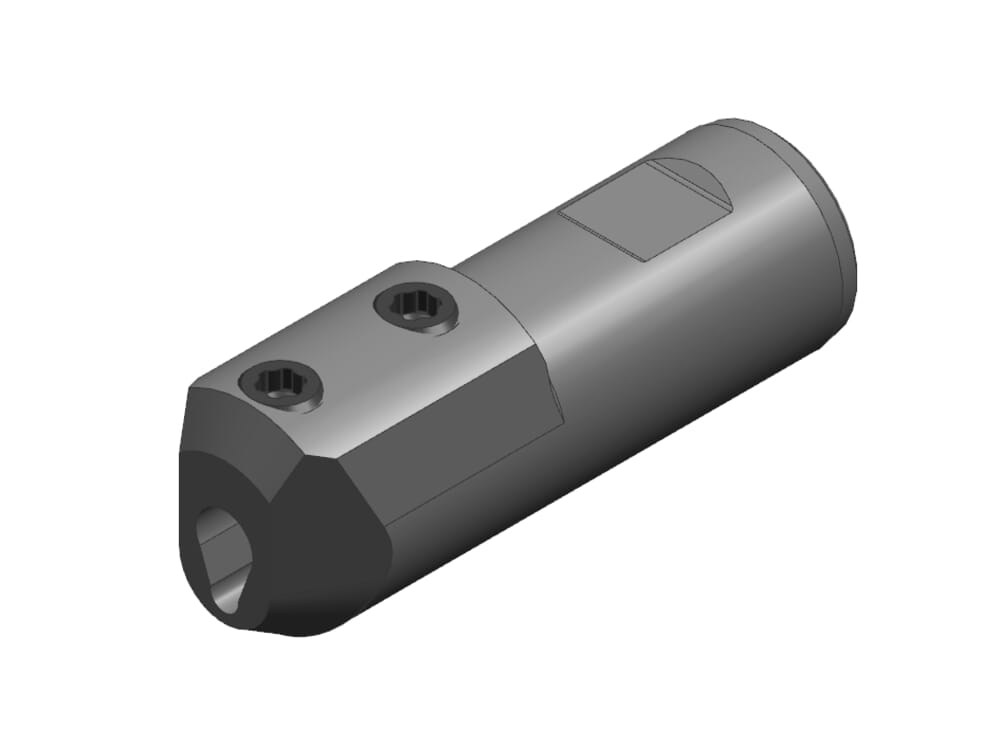

B1050016U102_PICTO.TIF B1050016U102.TIF

B105.0016.U1.02

Toolholder

IK_GENERELL.EPS INNEN_BOHRUNG_AUSDREHEN.EPS

Part number B1050016U102

HORN Toolholder B105.0016.U1.02 for

Please note:Technical instructions

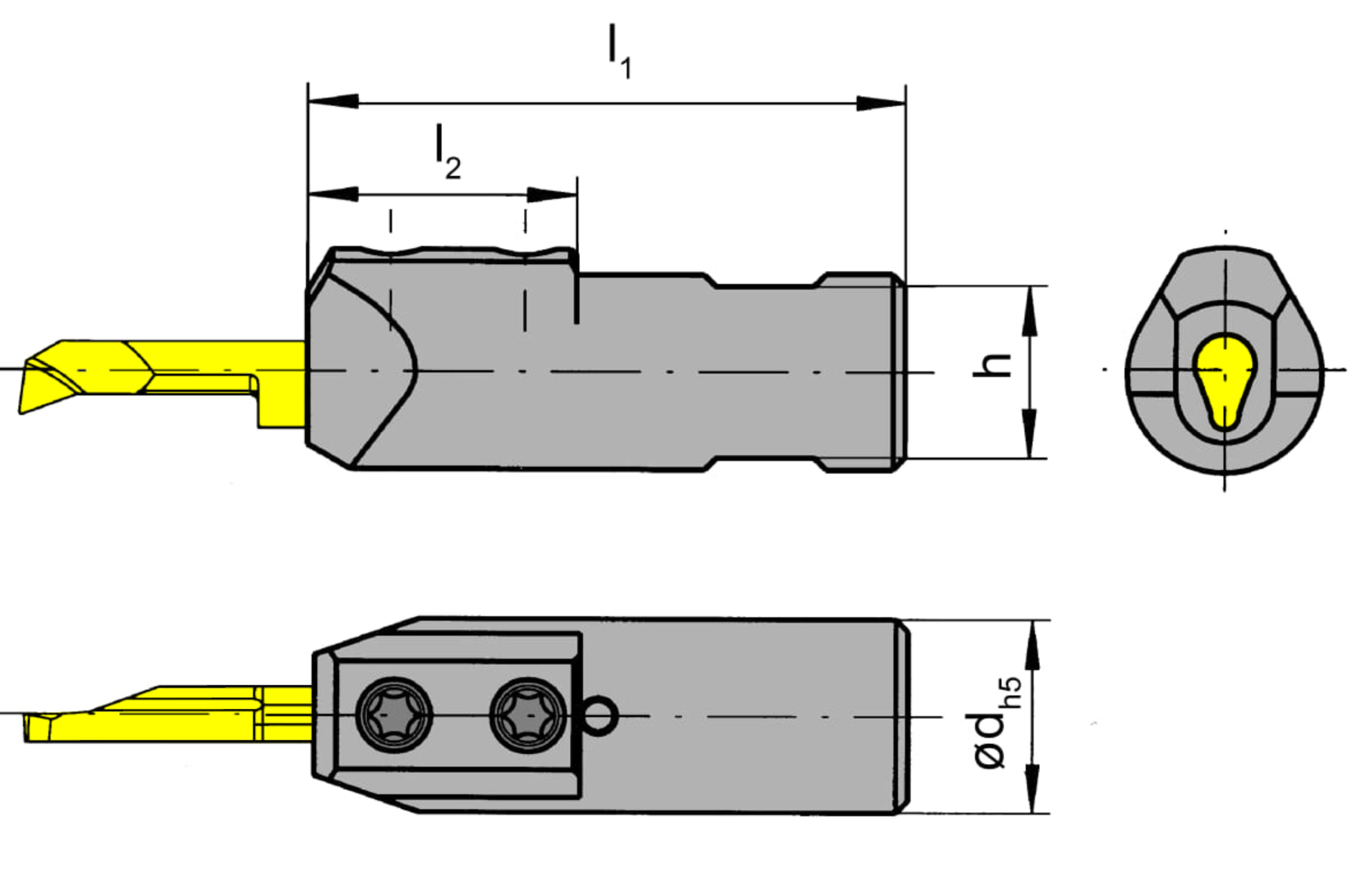

Shank diameter (d)
16 mm
Height clamping surface(s) (h)
14 mm
Head length (l2)
22 mm
ISO_CCTWS
HORN105225$95N$$$$$
DIN_CCTWS
HORN-10522595N
Katalog_CCTWS
105225
DIN_CCTMS
ZYL01601015
ISO_CCTMS
ZYL10G1600h$06
Total length (l1)
49 mm
Downloads
B1050016U102_20211118_173635515.DXF Download
B105_0016_U1_02_20171121_223423029.STP Download
Download all files
