Toolholder
Part number SH1170032416IK

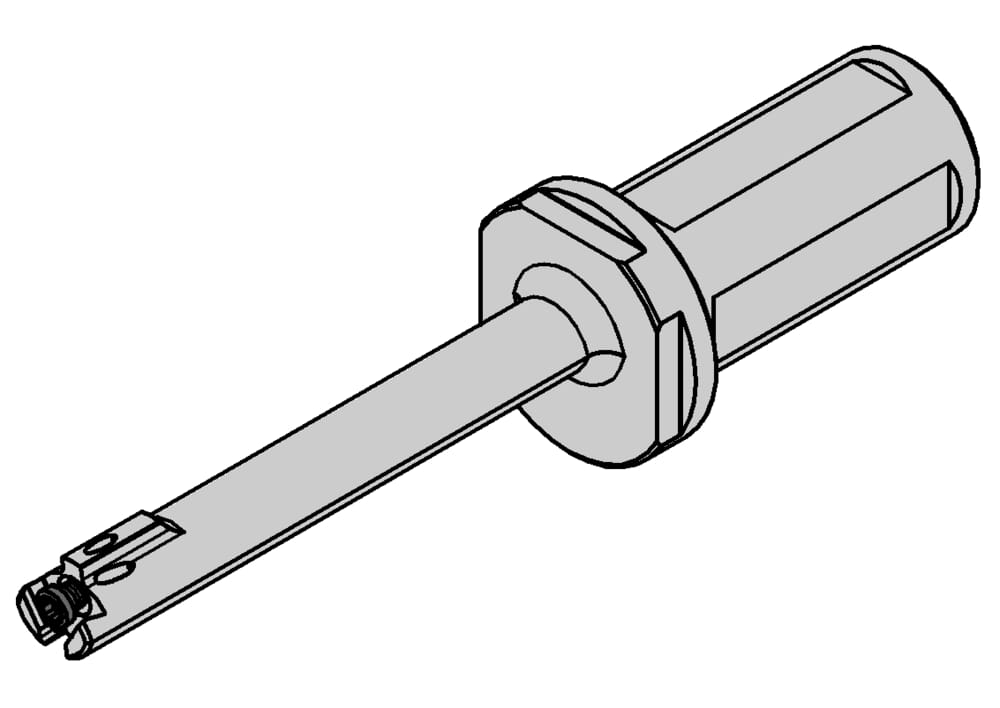

HORN Toolholder SH117.0032.4.16.IK for Broaching
Please note:Technical instructions
DIN_CCTWS
HORN-117D61050N
Form (Form)
D
ISO_CCTMS
ZYL24G3200$$$$
DIN_CCTMS
ZYL03202415
Katalog_CCTWS
117D605
Outcropping, neck, working length (l2)
125
mm
ISO_CCTWS
HORN117D61050N$$$$$
Clamping, shank diameter (d)
32
mm
Minimum drilling diameter (Dmin)
38
mm
Length from bore (l)
138
mm
Height clamping surface(s) (h)
30
mm
Total length (including cutting insert) (l1)
198
mm
Adjustment dimension center to cutting edge (f1)
22
mm
| Downloads | |
|---|---|
| SH1170032416IK.STP | Download |
| Download all files | |
