SH117.0032.4.16.IK
Toolholder
Part number SH1170032416IK

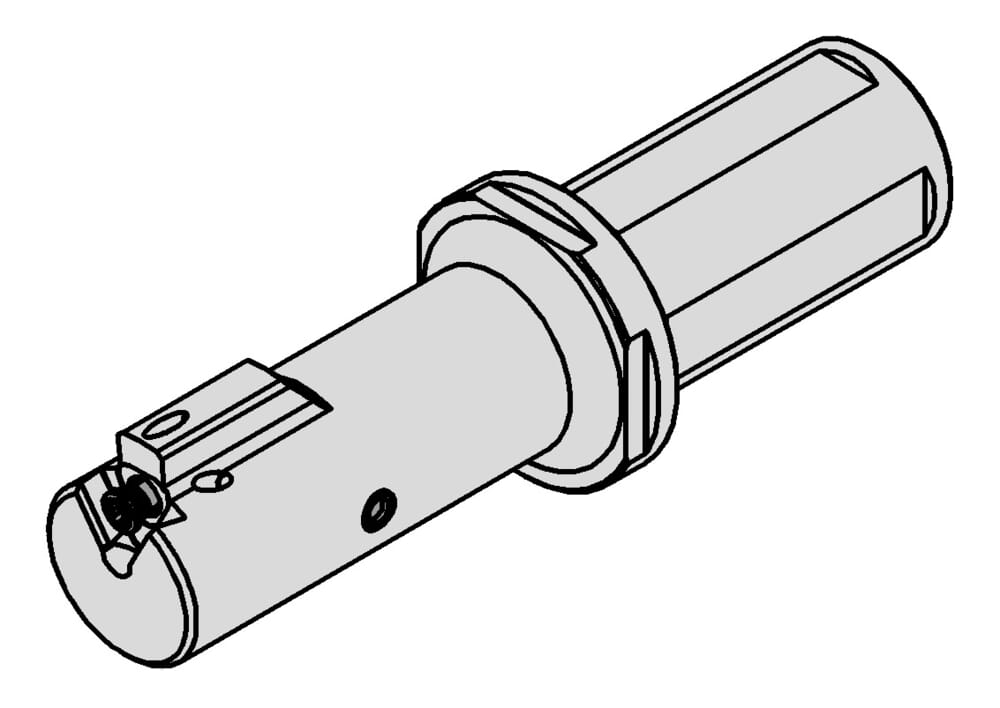

HORN Toolholder SH117.0032.4.16.IK for Broaching
Please note:Technical instructions
Minimum drilling diameter (Dmin)
38 mm
Form (Form)
D
ISOCCTMS
ZYL24G3200$$$$
DIN_CCTMS
ZYL03202415
Katalog_CCTWS
117D605
DIN_CCTWS
HORN-117D61050N
ISOCCTWS
HORN117D61050N$$$$$
Clamping, shank diameter (d)
32 mm
Length from bore (l)
138 mm
Height clamping surface(s) (h)
30 mm
Total length (including cutting insert) (l1)
198 mm
Adjustment dimension center to cutting edge (f1)
22 mm
Outcropping, neck, working length (l2)
125 mm
| Downloads | |
|---|---|
| SH117_0032_4_16_IK-DIN.XML | Download |
| SH117_0032_4_16_IK-DXF.DXF | Download |
| SH117_0032_4_16_IK-STP.STP | Download |
| SH117_0032_4_16_IK-ISO.XML | Download |
| Download all files | |
