R105.1819.005.1.4 IG35
insert
Part number R105181900514IG35

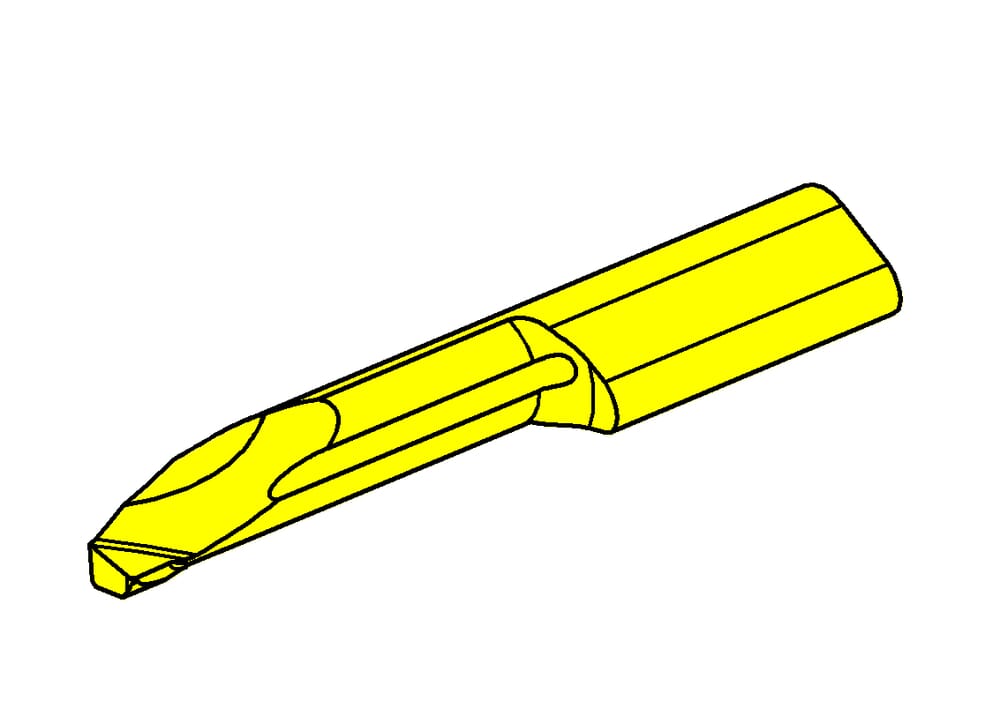

HORN insert R105.1819.005.1.4 IG35 for Turning
Please note:Technical instructions
Neck length (l2)
10 mm
Top radius (r)
0.05 mm
Head size (a)
3.7 mm
Maximum depth of groove (tmax)
0.3 mm
Width of blank (b)
6.4 mm
ISO_SSC
HORN105124$95N$$$$$
Katalog_SSC
105124
Neck diameter (d)
2.9 mm
Setting range radial (f)
1.9 mm
Total length (l5)
25 mm
Smallest bore diameter (Dmin)
4 mm
| Downloads | |
|---|---|
| R105181900514_20230113_233707045.STP | Download |
| Download all files | |
