613.0215.00 AS45

Insert

Part number 613021500AS45

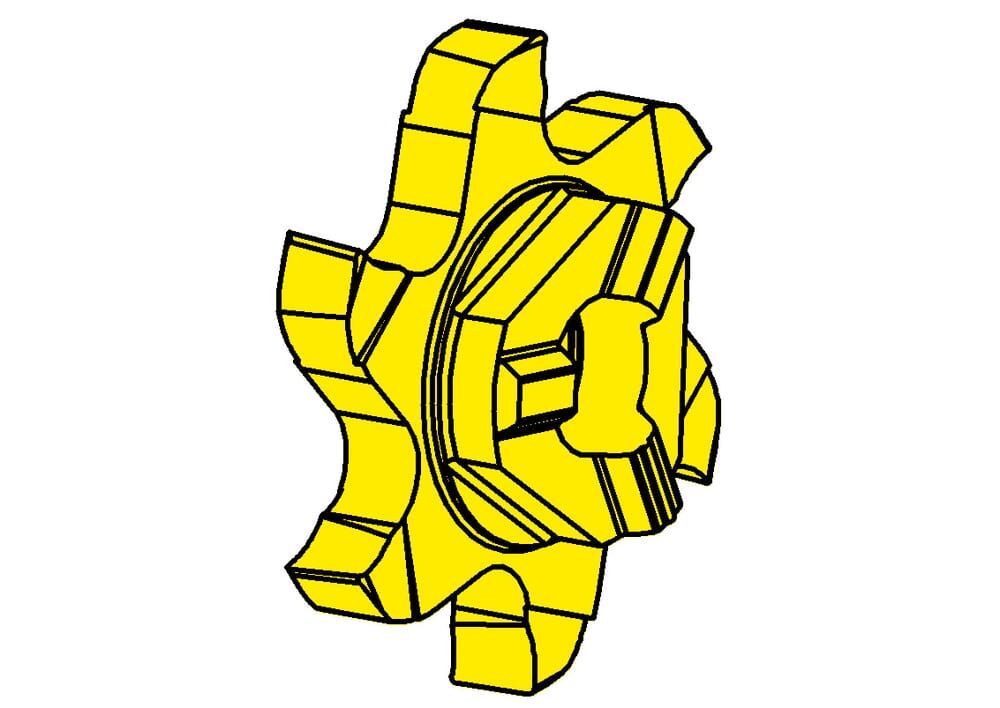

HORN Insert 613.0215.00 AS45 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

6 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

2.26 mm

Maximum milling depth/ depth of groove (tmax)

4.5 mm

Nominal range (Nw)

2.15 mm

Cutting insert thickness, setting length complete (s)

5.7 mm

Corner radius (r)

0.2 mm
