R76IK.TIF
R76IK.TIF R76IK_20170127_171104753.TIF

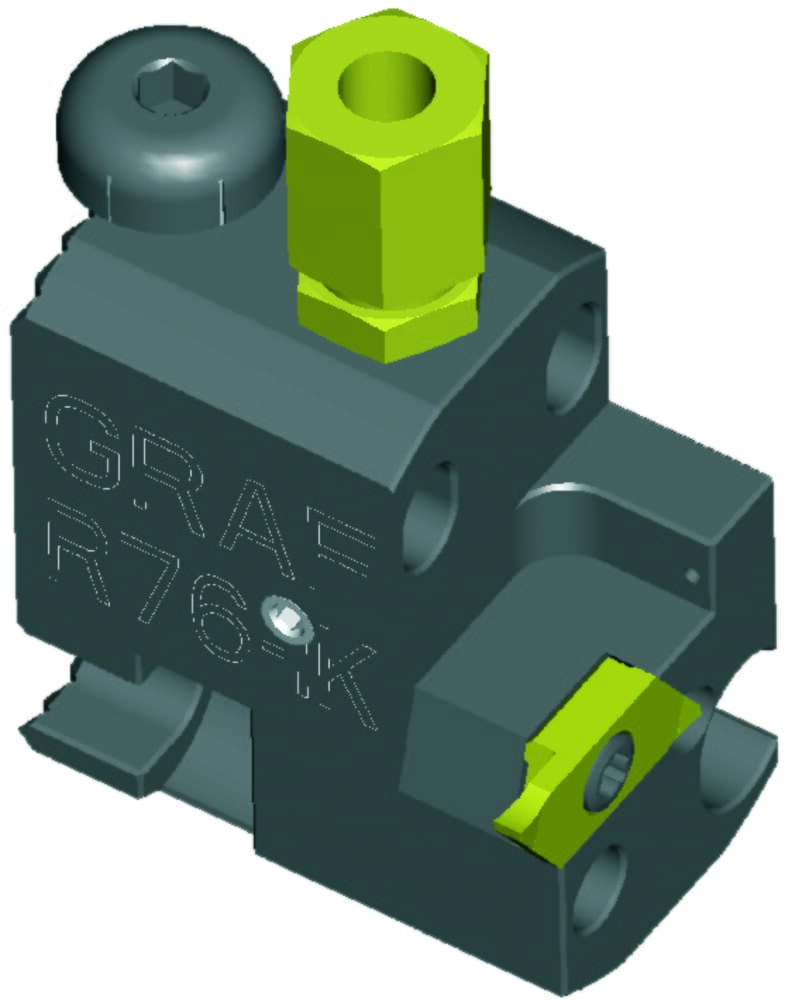

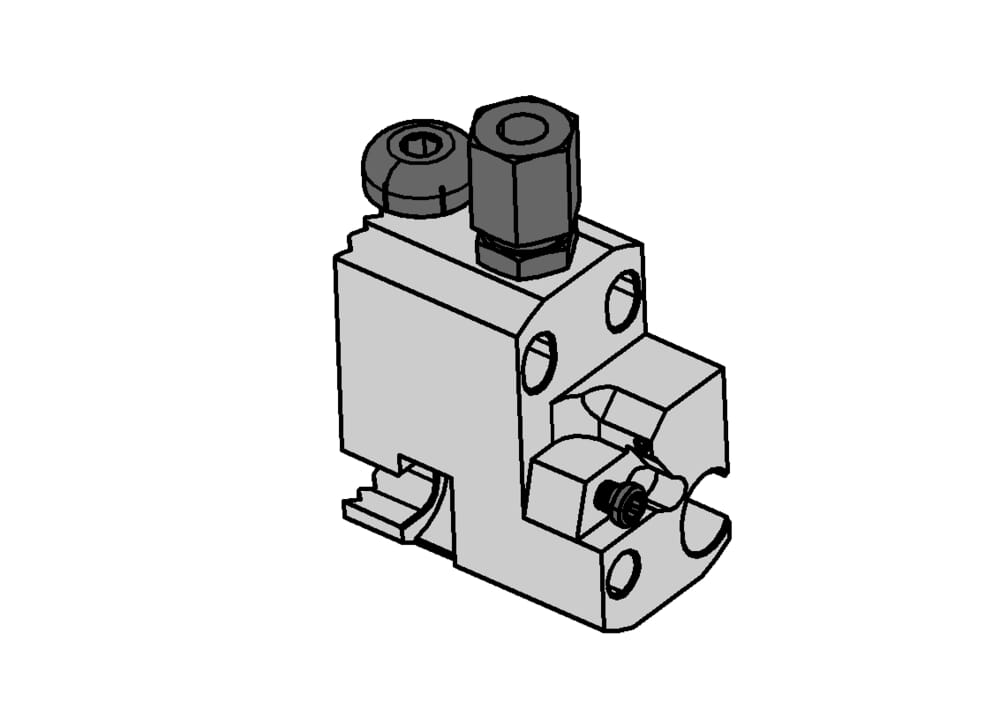

R.76.IK

Back working tool holder for HORN insert type S274

GRAF.EPS IK_GENERELL.EPS EINSTECHEN_LAENGSDREHEN.EPS AUSSEN_EINSTECHEN.EPS

Part number R76IK

HORN Back working tool holder for HORN insert type S274 R.76.IK for Turning

Please note:Technical instructions

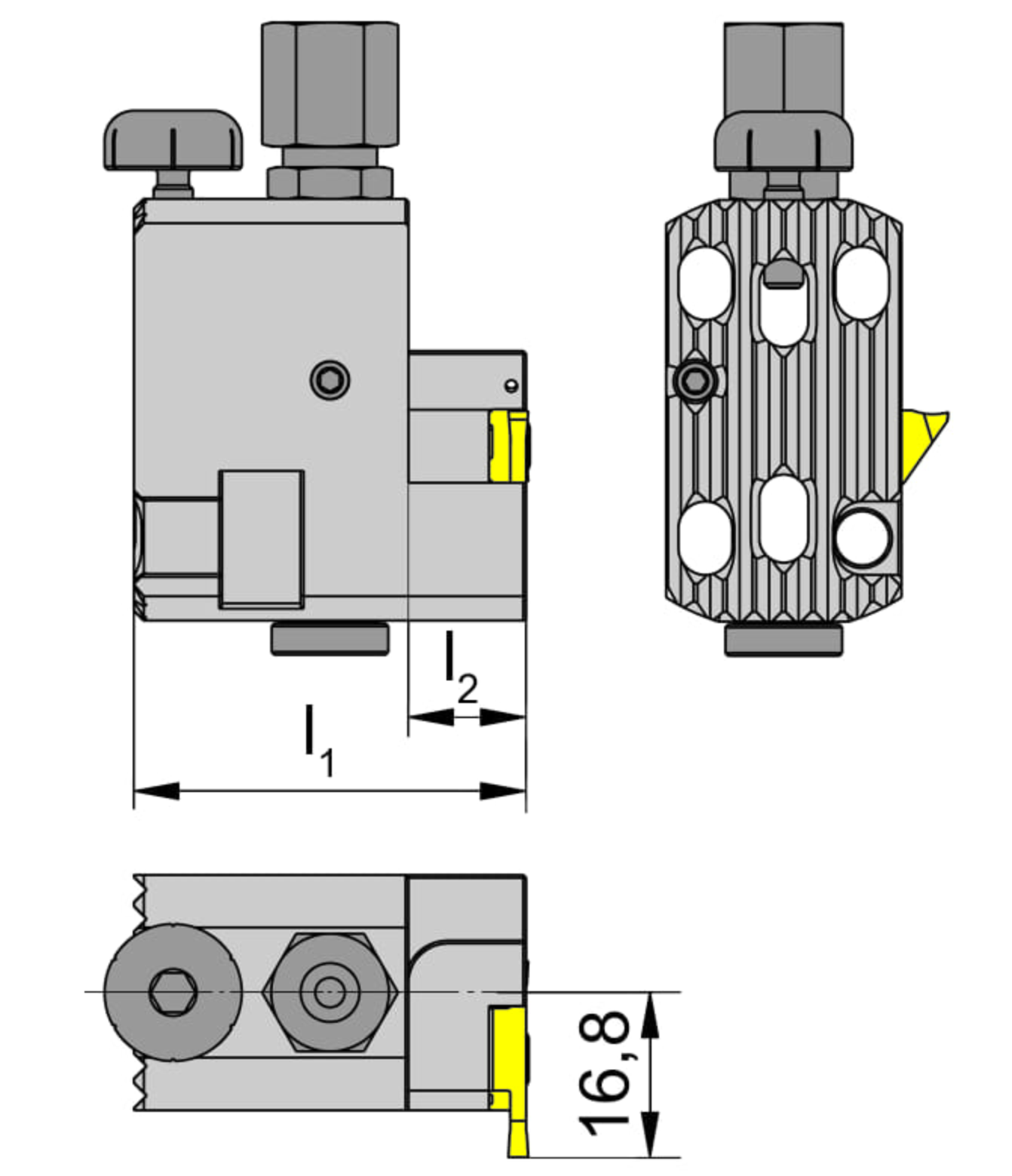

Outcropping length (without cutting plate) (l2)
12 mm
Total length (without cutting insert) (l1)
40 mm
shank-clamping-length-met
40 mm
ISO_CCTWS
HORN274040000R$$$$$
DIN_CCTWS
HORN-274040000R
Katalog_CCTWS
274040R
Plating seat size (Größe)
4
