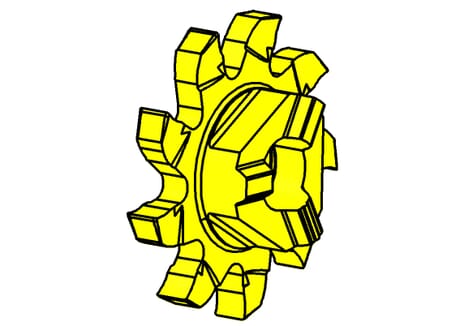

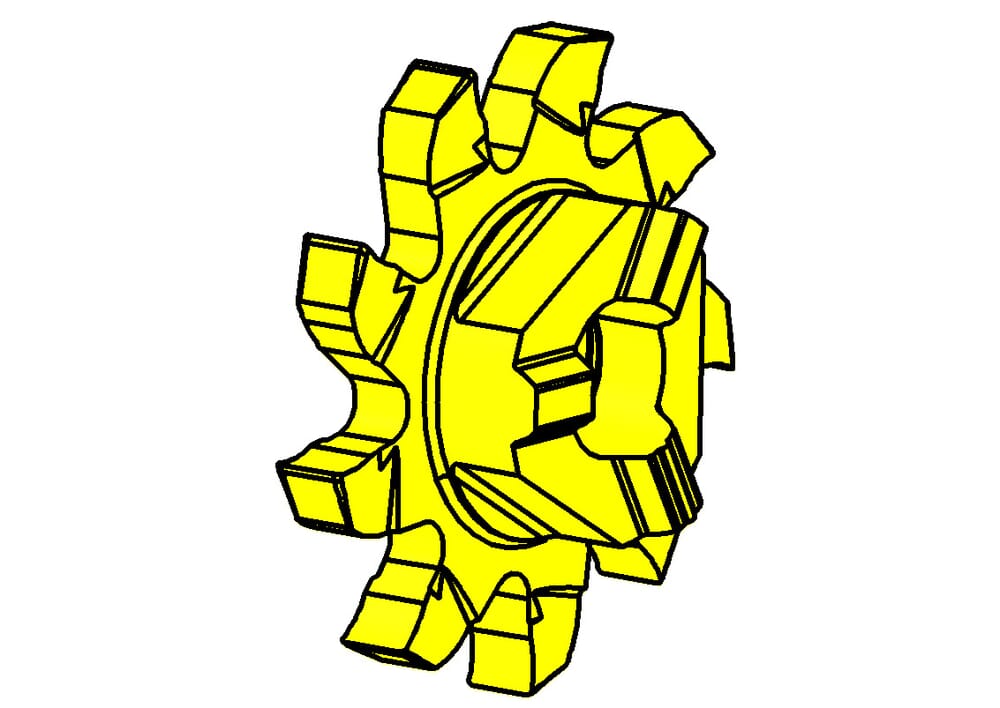

913_0150_00_EG55-PICTO.TIF

913.0150.00 EG55

Insert

VOLLRADIUS_NUT.EPS

TRENNFRAESEN.EPS

ZAEHNEZAHL_Z9.EPS

Part number 913015000EG55

HORN Insert 913.0150.00 EG55 for Milling

Please note:Technical instructions

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

9 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

Width of groove (w)

1.5 mm

Maximum milling depth/ depth of groove (tmax)

4.5 mm

Cutting insert thickness, setting length complete (s)

5.7 mm

Corner bevel (45 ° x b) (b x 45°)

0.05 mm

Downloads
913_0150_00_EG55-DXF.DXF	Download
913_0150_00_EG55-ISO.XML	Download
913_0150_00_EG55-STP.STP	Download
913_0150_00_EG55-DIN.XML	Download
Download all files
