DAM32.032.M166.03B

Toolholder

PLANFRAESEN.EPS ECKFRAESEN.EPS ZIRKULAREINTAUCHEN.EPS RAMPE_EINTAUCHEN.EPS

Part number DAM32032M16603B

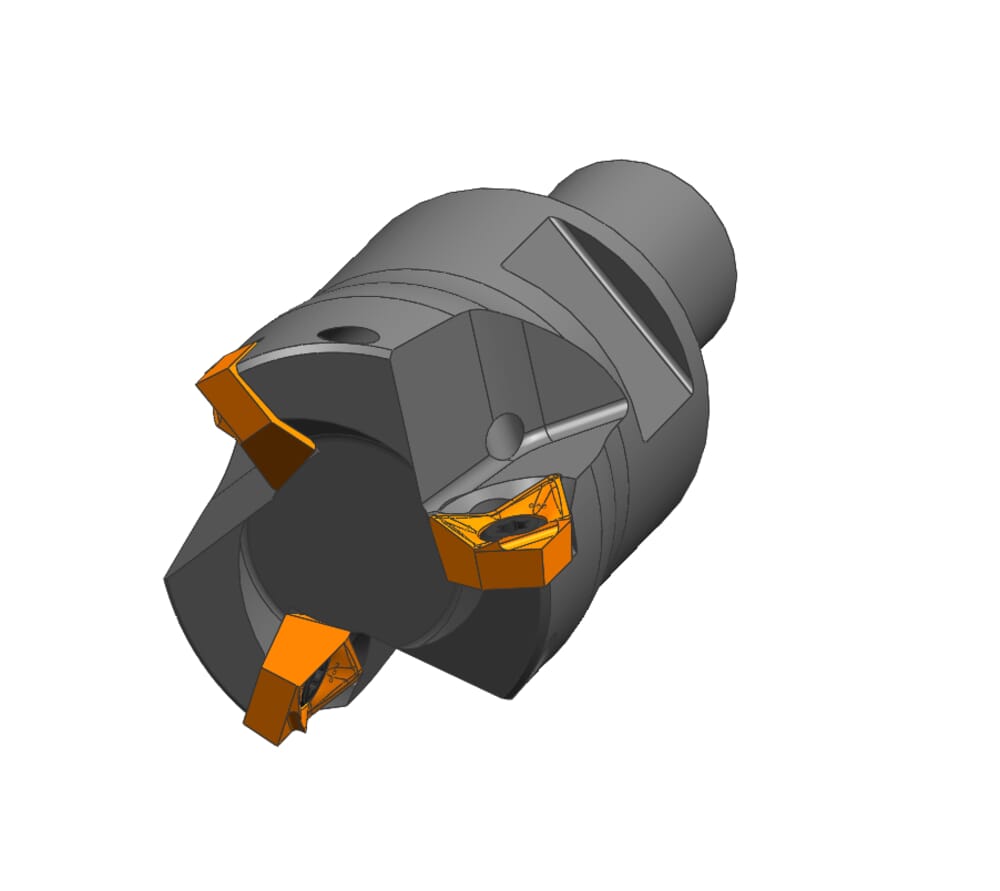

HORN Toolholder DAM32.032.M166.03B for Milling

Please note:Technical instructions

DIN_CCTWS
HORN-DA32323N
Maximum stepover (ap) (ap)
4.8 mm
Key range (SW)
24 mm
Neck diameter on stop (d4)
29 mm
Length from stop (l2)
35 mm
Total milling length with insert (l1)
58 mm
Katalog_CCTMS
16001
ISO_CCTMS
HORN01600105$$
DIN_CCTMS
HORN-01600105
Katalog_CCTWS
DA3232
ISO_CCTWS
HORNDA3232$$3N$$$$$
Diameter miller body (d1)
31 mm
Number of teeth (Z)
3 St.
Cutting diameter (Ds)
32 mm
Screw thread (d2)
M16
Downloads
DAM32032M16603B_20210629_121841972.DXF Download
DAM32_032_M166_03B.STP Download
Download all files

Last visited

606.5519.10.02 TA45

606.5519.10.02 TA45

Insert

60655191002TA45

GEWINDE_WITHWORTH.EPS GEWINDE_TEILPROFIL.EPS GEWINDE_VOLLPROFIL.EPS GEWINDE_INNEN_FRAESEN.EPS ZAEHNEZAHL_Z6.EPS
Show details
S229.0500.HR4 AS62

S229.0500.HR4 AS62

Insert

S2290500HR4AS62

TEILSCHNITT.EPS GEOMETRIE_HR.EPS EINSTECHEN.EPS
Show details
RS274.0200.06.20 IG35

RS274.0200.06.20 IG35

Insert

RS27402000620IG35

TEILSCHNITT.EPS EINSTECHEN.EPS GEOMETRIE_20.EPS ABSTECHEN_20210506_153854505.EPS
Show details
S229.0030.C1 TN35

S229.0030.C1 TN35

Inserts

S2290030C1TN35

ABSTECHEN_20210506_153854505.EPS GEOMETRIE_C.EPS
Show details
S224.0400.32 TN35

S224.0400.32 TN35

Inserts

S224040032TN35

KOPIERDREHEN.EPS GEOMETRIE_3.EPS ABSTECHEN_20210506_153854505.EPS EINSTECHEN.EPS LAENGSDREHEN.EPS
Show details
S117.0397.01.08.B1 AN45

S117.0397.01.08.B1 AN45

117 style broach insert - B1 geometry

S11703970108B1AN45

TOLERANZKLASSE_P9.EPS INNEN_NUTSTOSSEN.EPS GEOMETRIE_B_NUTSTOSSEN.EPS AUSSEN_NUTSTOSSEN.EPS
