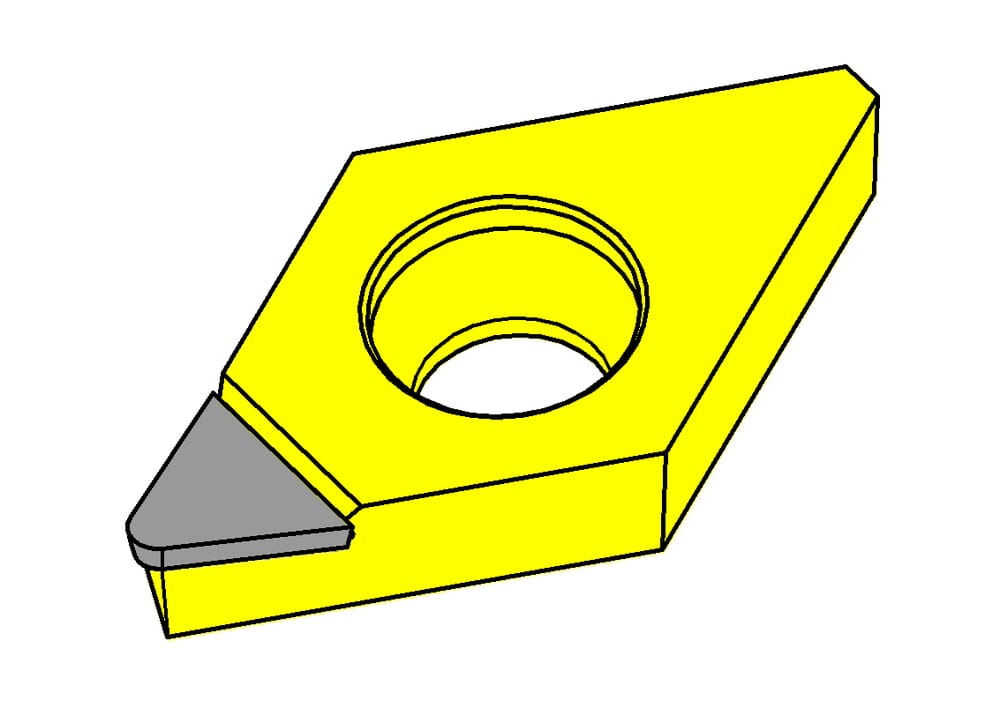

DCGW070202RWH0_PICTO.TIF

DCGW070204R.W.H0 PD70

Inserts

GEOMETRIE_H0.EPS WERKSTOFF_N.EPS INNEN_BOHRUNG_AUSDREHEN.EPS PLANDREHEN.EPS PKD.EPS AUSSEN_LAENGSDREHEN.EPS

Part number DCGW070204RWH0PD70

HORN Inserts DCGW070204R.W.H0 PD70 for Turning

Please note:Technical instructions

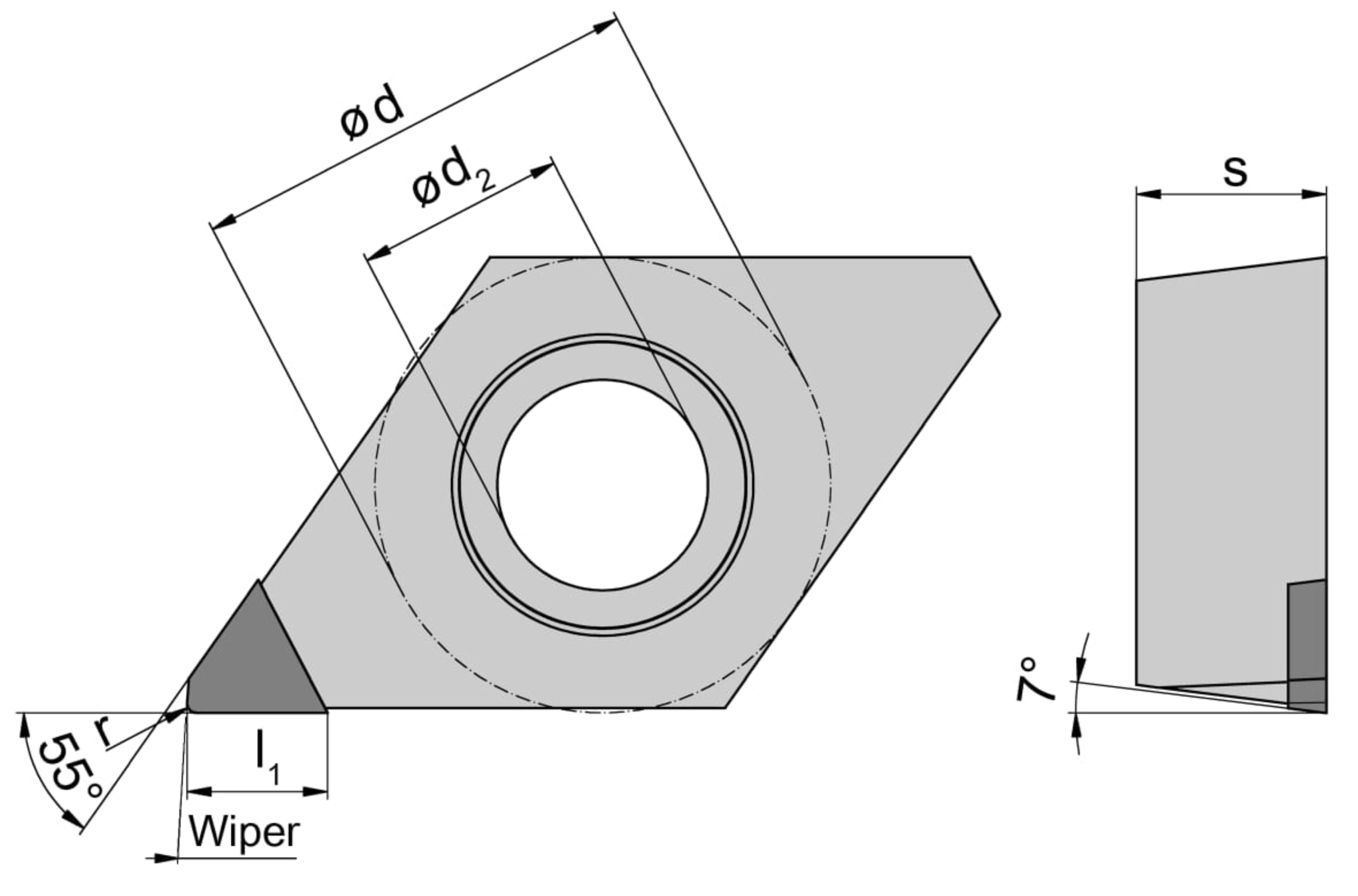

Bore diameter (d2)
2.8 mm
eclass-shortcut
21-18-20-11
ISO_SSC
ISO$DC0702043RB$$04
Corner radius (r)
0.4 mm
Cutting insert height, Cutting insert thickness (s)
2.38 mm
Effective cutting length (l1)
3.5 mm
Inner circle diameter (d)
6.35 mm
