L110.1829.9.6 EG35
Insert
Part number L110182996EG35

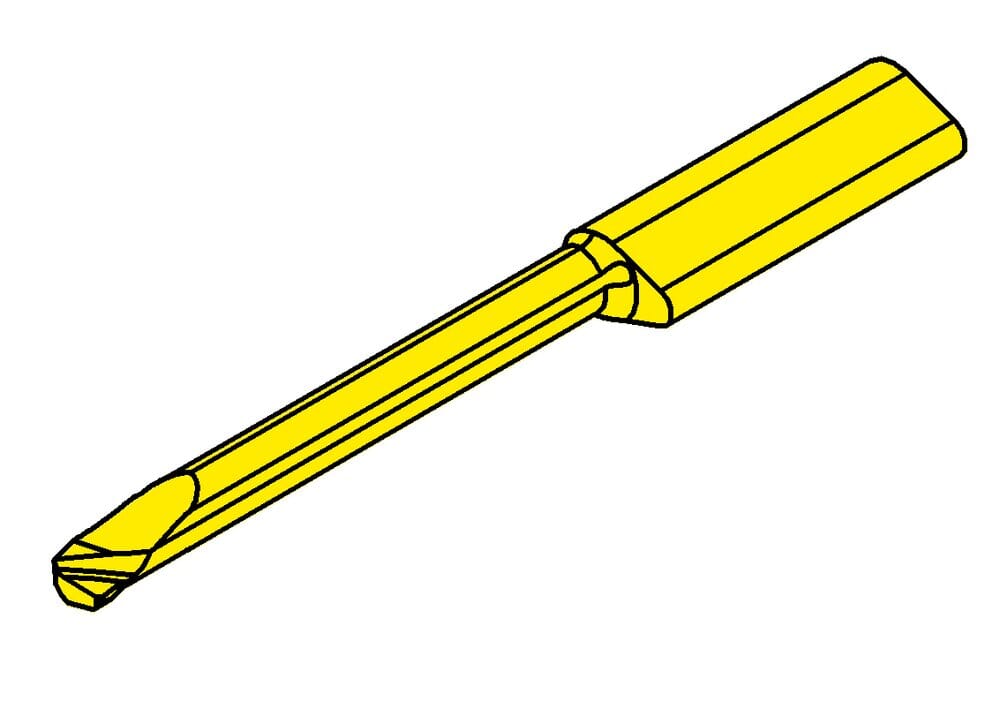

HORN Insert L110.1829.9.6 EG35 for Turning
Please note:Technical instructions
Katalog_SSC
110260
Smallest bore diameter (Dmin)
6 mm
Total length (l5)
80 mm
Setting range radial (f)
2.9 mm
Neck diameter (d)
4.8 mm
Neck length (l2)
50 mm
ISO_SSC
HORN110260$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.5 mm
Head size (a)
5.7 mm
Free angle (α)
21 °
Top radius (r)
0.2 mm
