Part number R105082018TI25

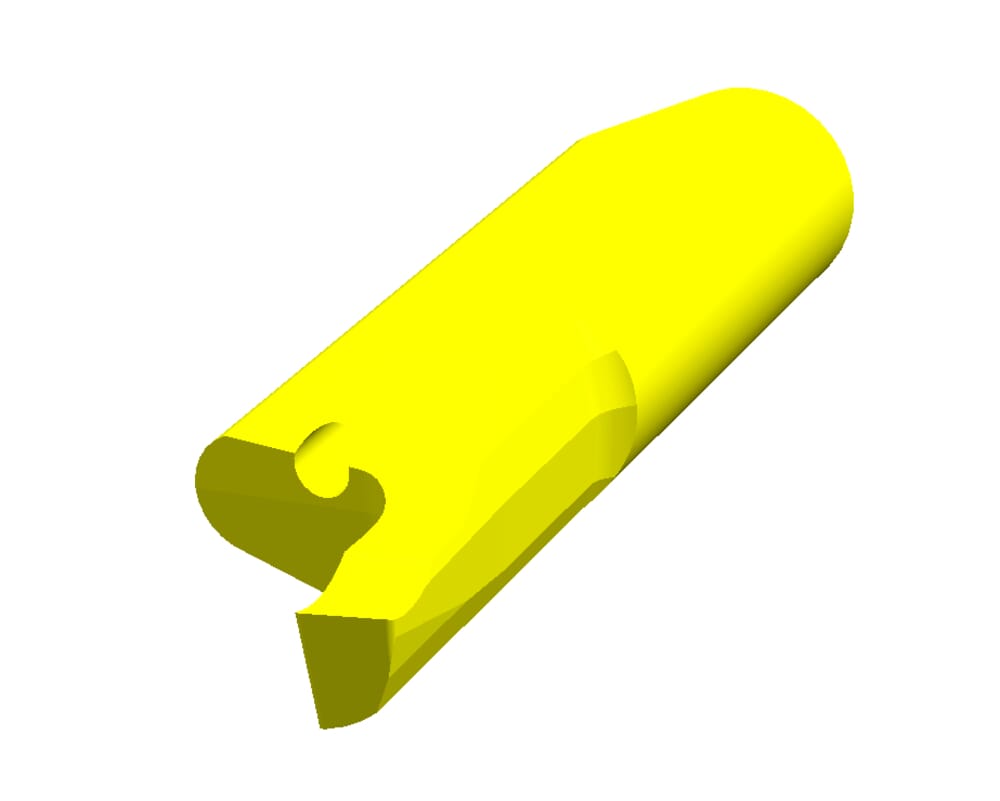

HORN Inserts R105.0820.1.8 TI25 for Turning

Please note:Technical instructions

ISO_SSC

HORN105125$95N$$$$$

Total length (l5)

25 mm

Corner radius (r)

0.15 mm

Width of groove (w)

2 mm

Katalog_SSC

105125

Neck length (l2)

10 mm

Smallest axial bore diameter (Da min)

8 mm

Width of blank (b)

7 mm

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax a)

4 mm

Adjustment dimension cutting center (f)

2 mm

Downloads
R105082018_20210630_145801311.STP	Download
R105082018_20210626_035531254.DXF	Download
Download all files
