R105.1805.005.0.1 TH35
Insert 105
Part number R105180500501TH35

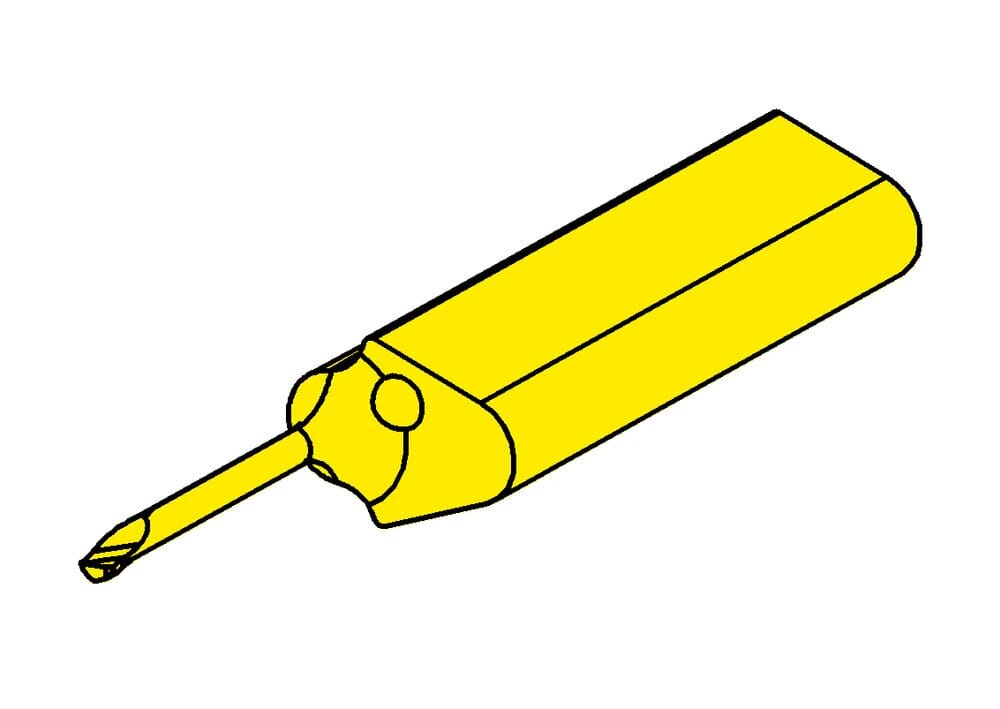

HORN Insert 105 R105.1805.005.0.1 TH35 for Turning
Please note:Technical instructions
Neck length (l2)
4 mm
Top radius (r)
0.05 mm
Head size (a)
0.9 mm
Maximum depth of groove (tmax)
0.1 mm
eclass-shortcut
21-18-20-11
Width of blank (b)
5.9 mm
Neck diameter (d)
0.65 mm
Setting range radial (f)
0.5 mm
Total length (l5)
25 mm
Smallest bore diameter (Dmin)
1 mm
