R105.1840.04.2.HV7 TH35
Insert
Part number R1051840042HV7TH35

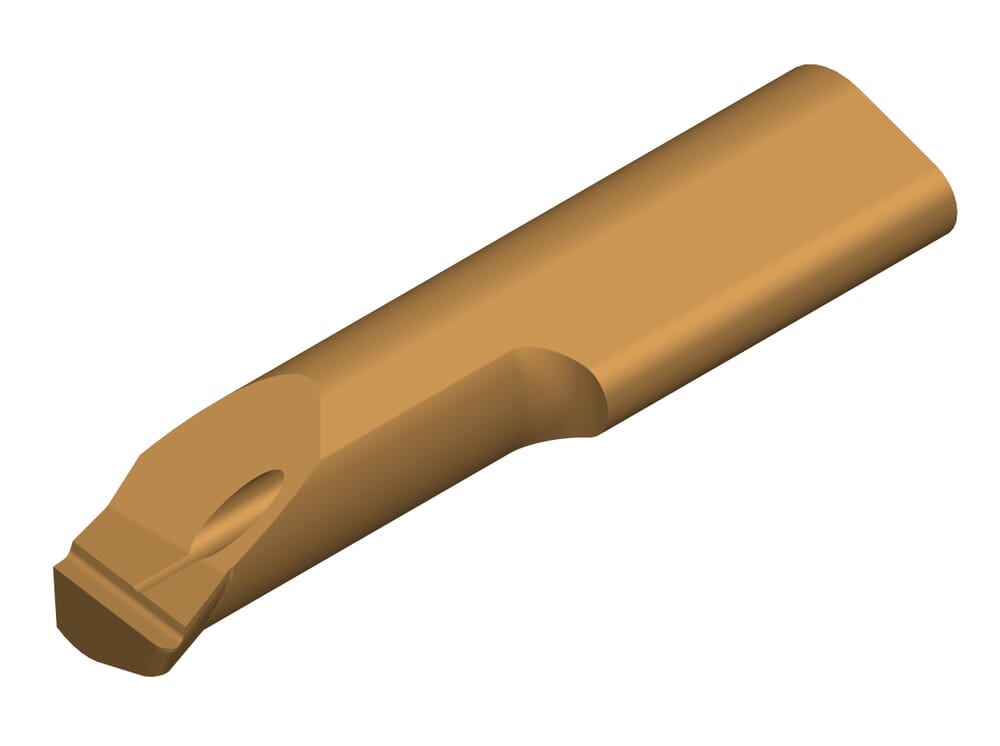

HORN Insert R105.1840.04.2.HV7 TH35 for Turning
Please note:Technical instructions
Katalog_SSC
105125
Smallest bore diameter (Dmin)
7 mm
Total length (l5)
30 mm
Setting range radial (f)
4 mm
Neck diameter (d)
5.2 mm
Neck length (l2)
15 mm
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7 mm
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
0.5 mm
Head size (a)
6.4 mm
Top radius (r)
0.4 mm
