R105.FB15.2.01 EG35
Insert
Part number R105FB15201EG35

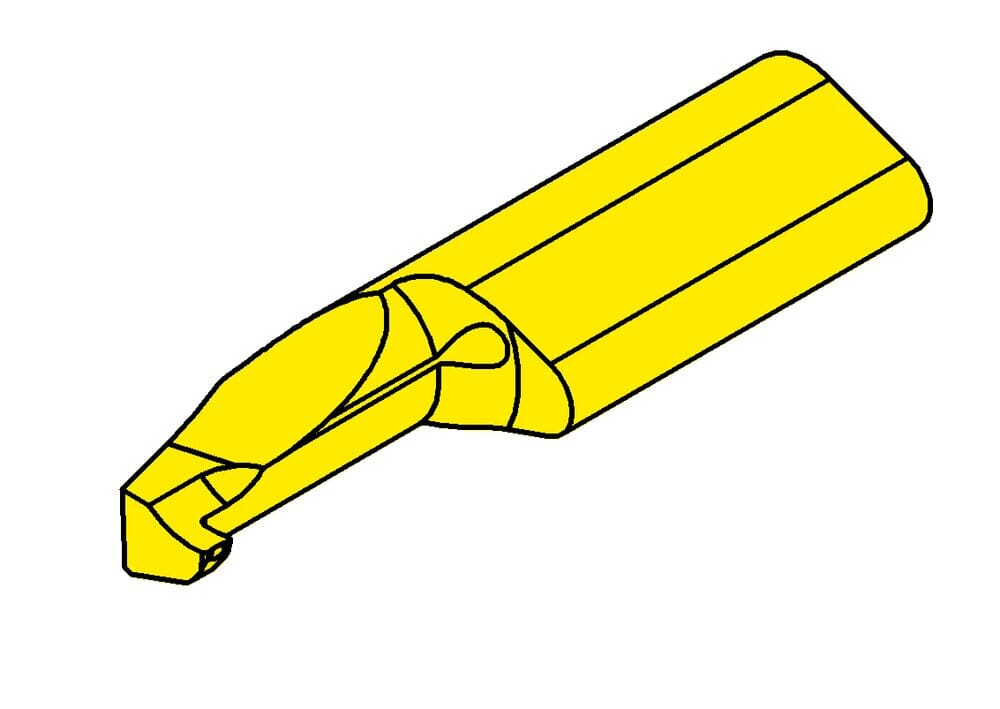

HORN Insert R105.FB15.2.01 EG35 for Turning
Please note:Technical instructions
Cutting edge count (CEDC)
1

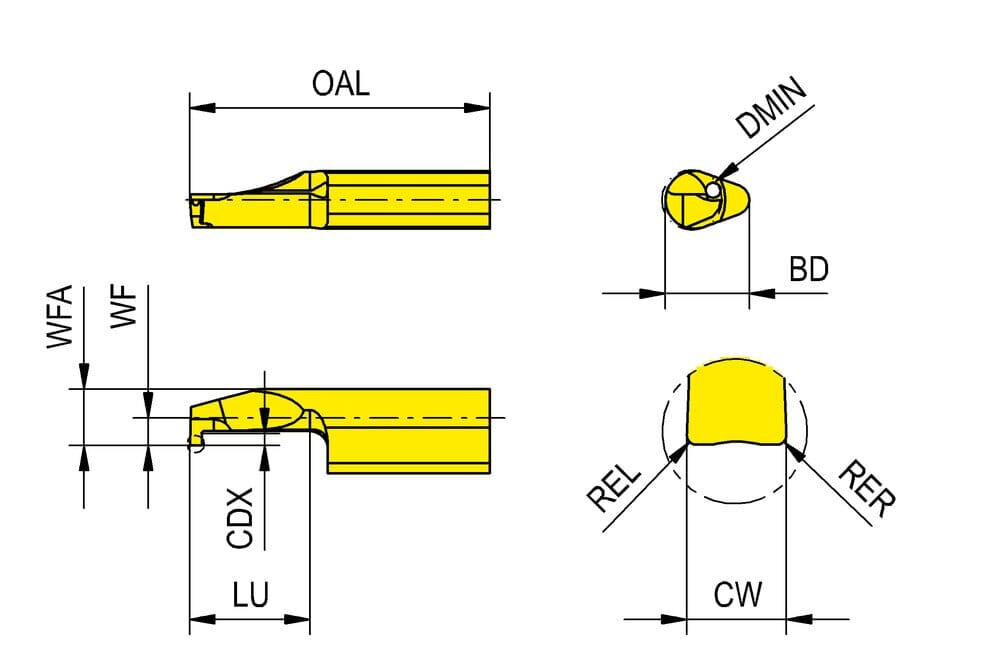

Dimension a at working width (WFA)
4.7 mm
Funktional width (WF)
2.3 mm
corner radius left hand (REL)
0.1 mm
corner radius right hand (RER)
0.1 mm
Overall length (OAL)
30 mm
Usable length (LU)
15 mm
Minimum bore diameter (DMIN)
5 mm
Cutting width (CW)
1.5 mm
Cutting depth maximum (CDX)
1 mm
Body diameter (BD)
7 mm
| Downloads | |
|---|---|
| R105_FB15_2_01_EG35-DXF.DXF | Download |
| R105_FB15_2_01_EG35-STP.STP | Download |
| R105_FB15_2_01_EG35-ISO.XML | Download |
| R105_FB15_2_01_EG35-DIN.XML | Download |
| Download all files | |
