RH100.2020.33
Toolholders
Part number RH100202033

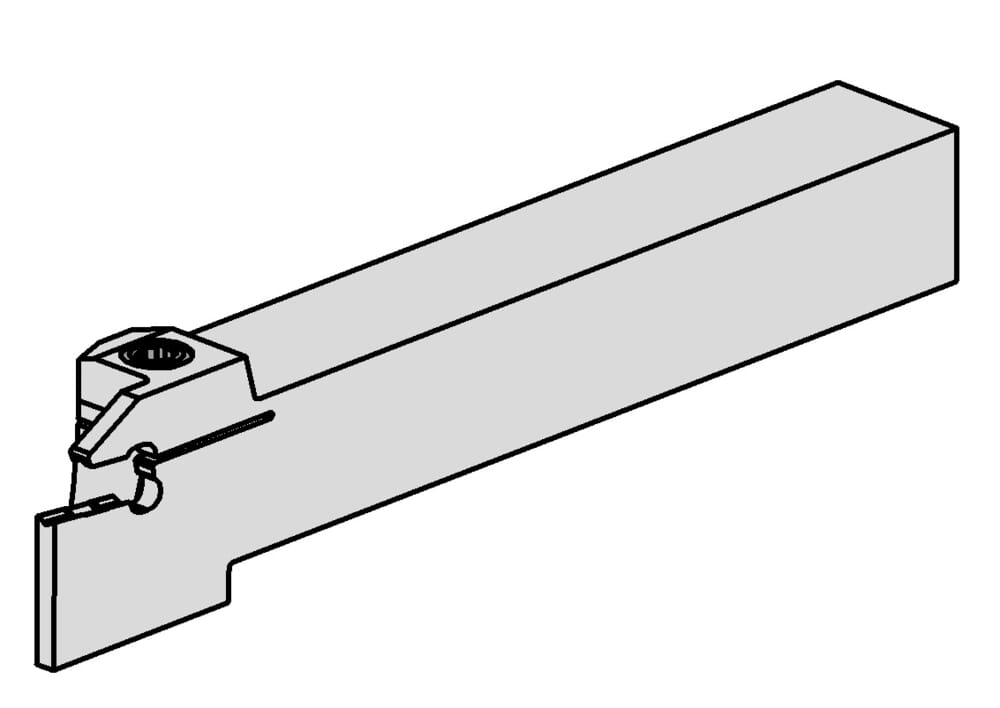

HORN Toolholders RH100.2020.33 for Turning
Please note:Technical instructions

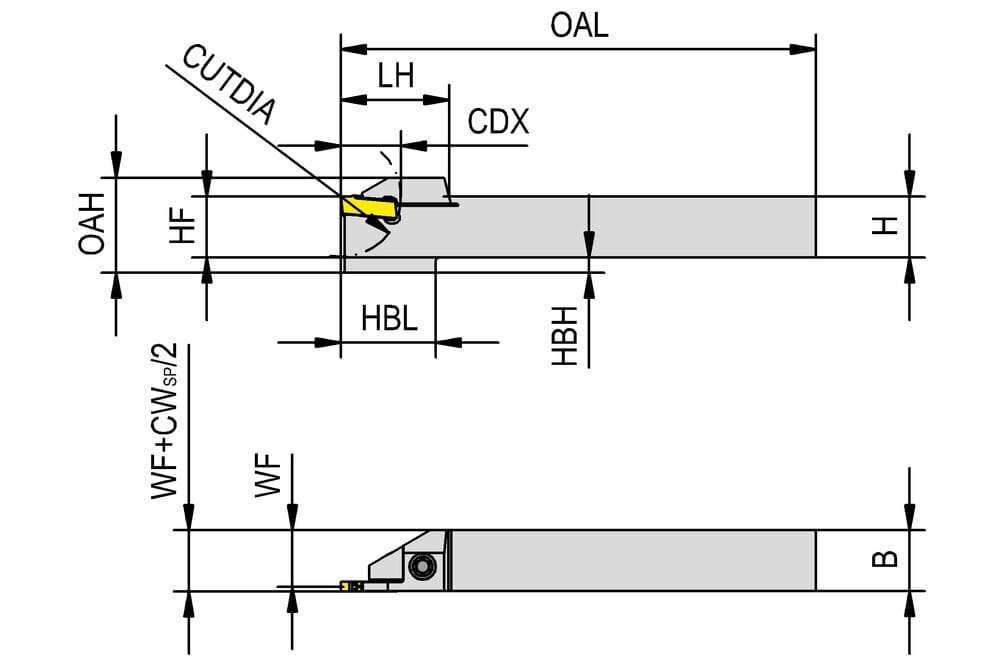

Peak height (h1)
25 mm
Form (Form)
B
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200105
Katalog_CCTWS
100038
DIN_CCTWS
HORN-100030058N
ISO_CCTWS
HORN100030058N$$$$$
Head length bottom without insert (l2)
35 mm
Head length top (including cutting edge) (l3)
38.5 mm
Adjustment dimension (formula) (f)
f1+w/2
eclass-shortcut
21-18-10-04
Maximum workpiece diameter (Dmax)
65 mm
Maximum insertion depth (tmax)
32.5 mm
Head height (HK)
31.6 mm
Shank height (h)
20 mm
Size (Größe)
3
Total length (including cutting insert) (l1)
125 mm
Adjustment dimension cutting center (f1)
18.85 mm
Shank width (b)
20 mm
| Downloads | |
|---|---|
| RH100_2020_33-DXF.DXF | Download |
| RH100_2020_33-DIN.XML | Download |
| RH100_2020_33-STP.STP | Download |
| RH100_2020_33-ISO.XML | Download |
| Download all files | |
