S100.0300.3V2 IG35
Insert
Part number S10003003V2IG35

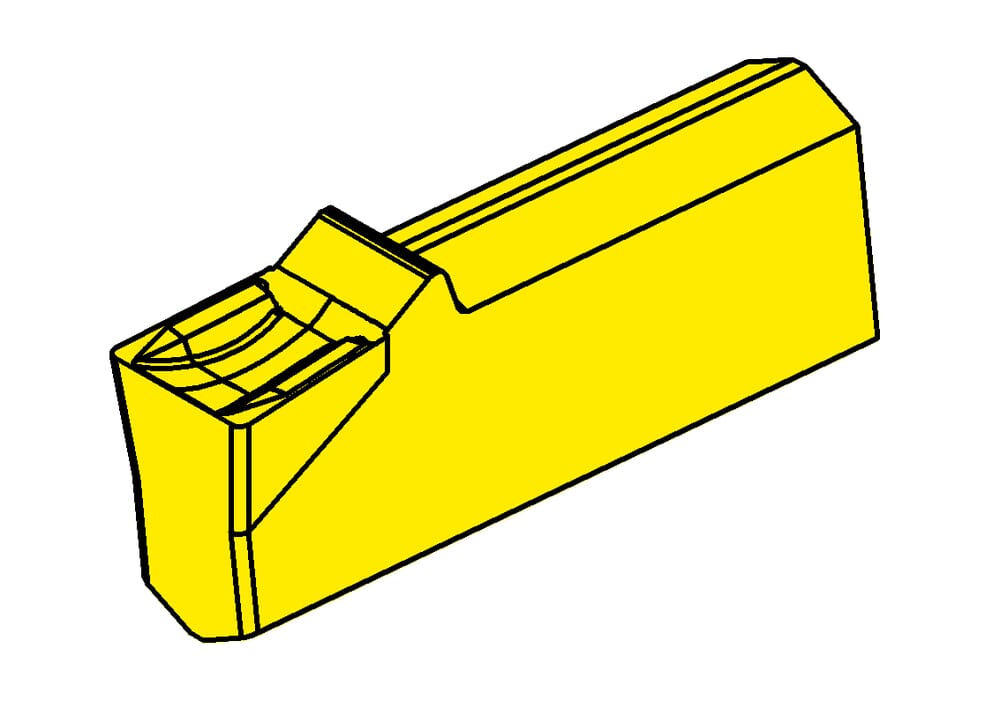

HORN Insert S100.0300.3V2 IG35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
ISO_SSC
HORN100030058N$$$$$
Katalog_SSC
100038
Plating seat size (Größe)
3

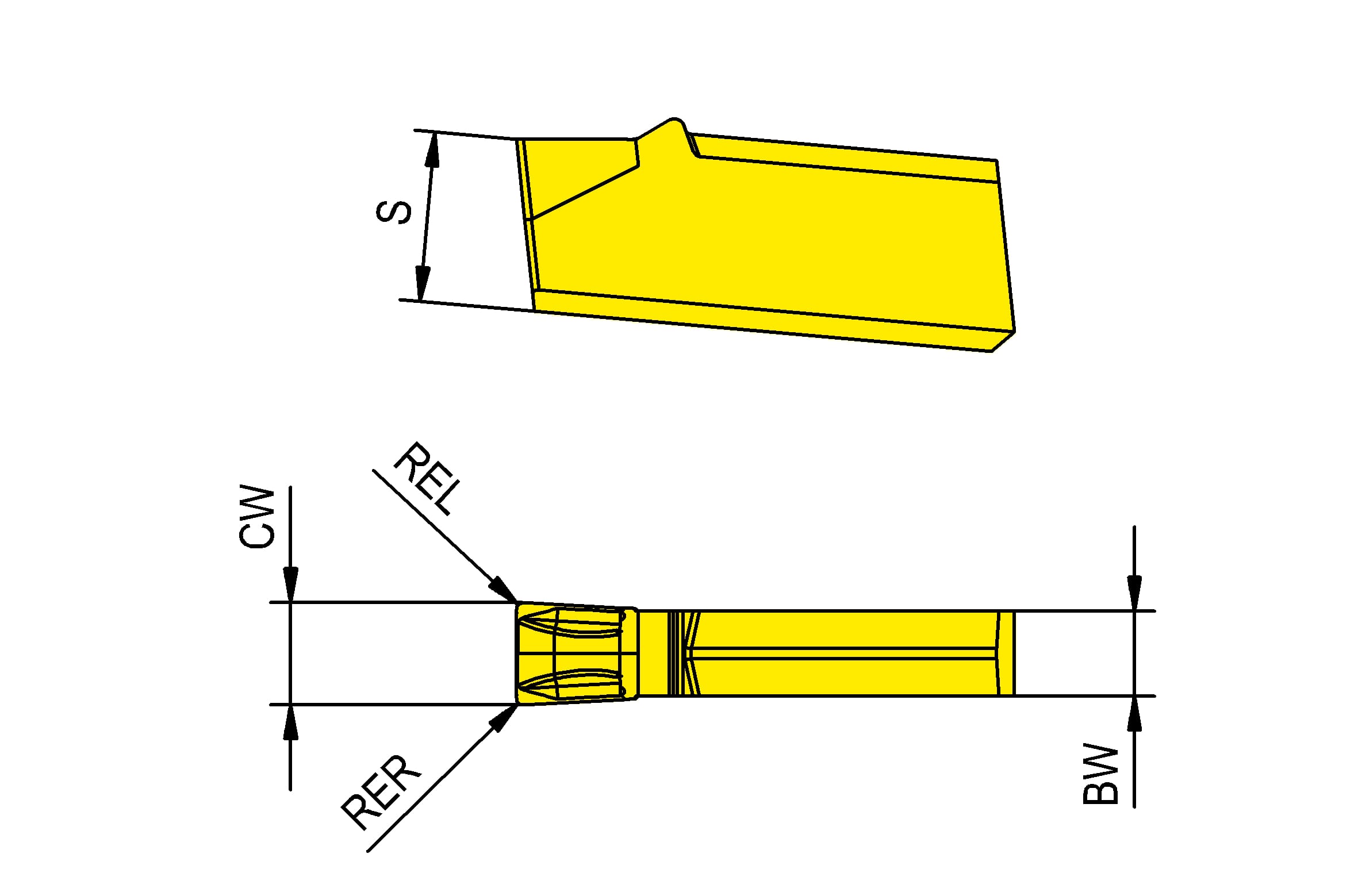

Width of groove (w)
3 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| S100_0300_3V2_IG35-DXF.DXF | Download |
| S100_0300_3V2_IG35-STP.STP | Download |
| S100_0300_3V2_IG35-ISO.XML | Download |
| S100_0300_3V2_IG35-DIN.XML | Download |
| Download all files | |
