RH100.2525.33
Toolholders
Part number RH100252533

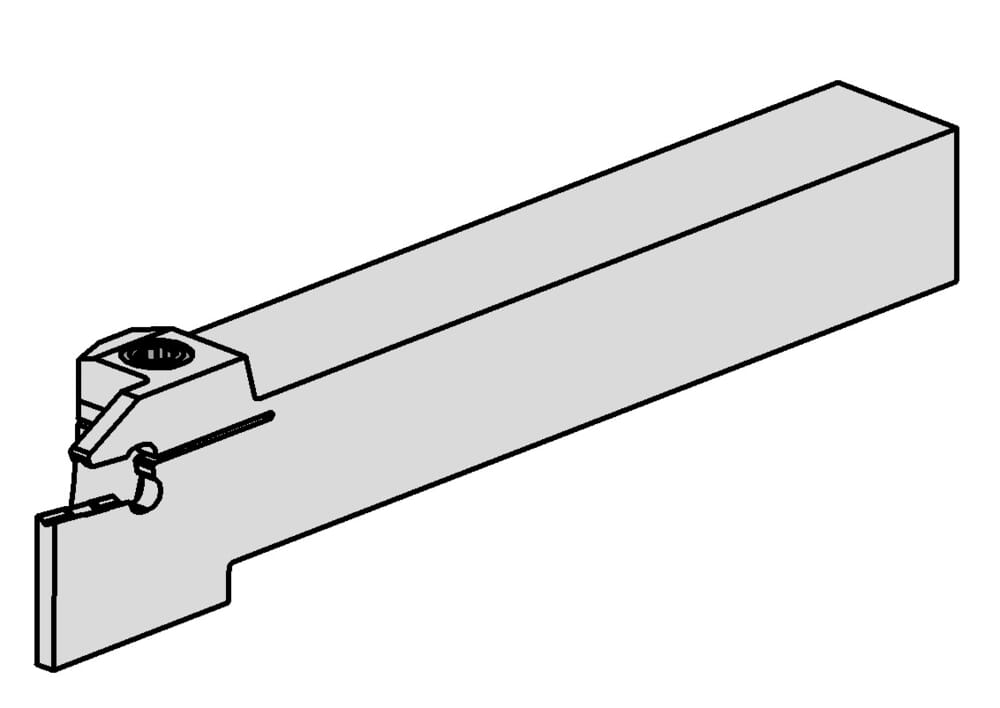

HORN Toolholders RH100.2525.33 for Turning
Please note:Technical instructions
ISO_CCTWS
HORN100030058N$$$$$
eclass-shortcut
21-18-10-04
Form (Form)
B
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
100038
DIN_CCTWS
HORN-100030058N

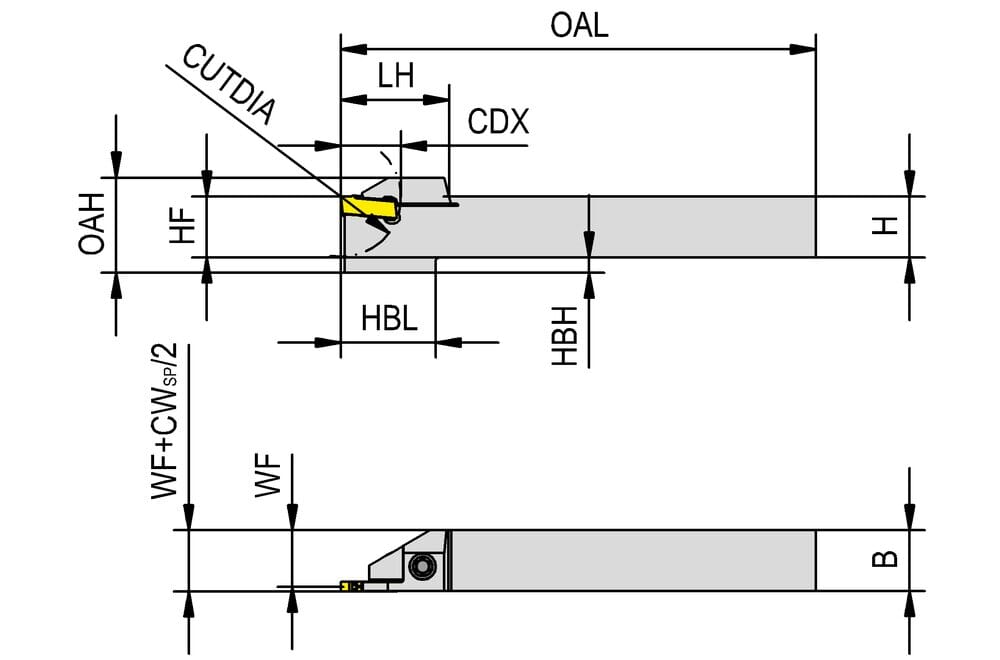

Shank width (b)
25 mm
Head length top (including cutting edge) (l3)
38.5 mm
Adjustment dimension (formula) (f)
f1+w/2
Peak height (h1)
25 mm
Maximum workpiece diameter (Dmax)
65 mm
Maximum insertion depth (tmax)
32.5 mm
Head height (HK)
31.6 mm
Shank height (h)
25 mm
Size (Größe)
3
Total length (including cutting insert) (l1)
150 mm
Adjustment dimension cutting center (f1)
23.85 mm
| Downloads | |
|---|---|
| RH100_2525_33-DXF.DXF | Download |
| RH100_2525_33-STP.STP | Download |
| RH100_2525_33-ISO.XML | Download |
| RH100_2525_33-DIN.XML | Download |
| Download all files | |
