RH100.2525.73
Toolholder
Part number RH100252573

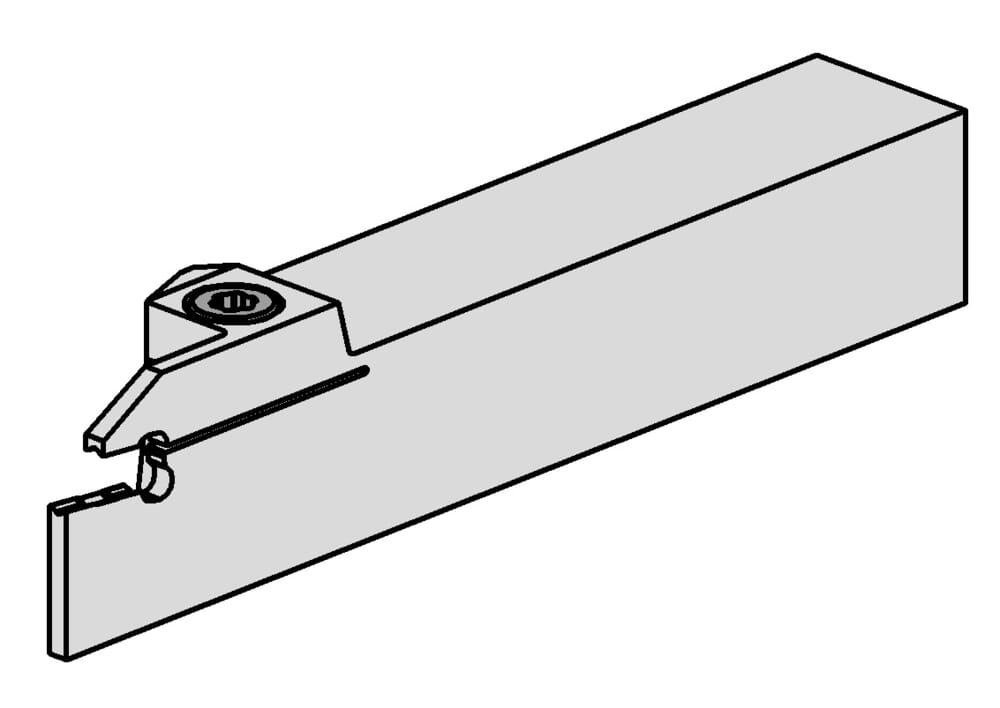

HORN Toolholder RH100.2525.73 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-10-04
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250105
Katalog_CCTWS
100038
DIN_CCTWS
HORN-100030058N
ISO_CCTWS
HORN100030058N$$$$$

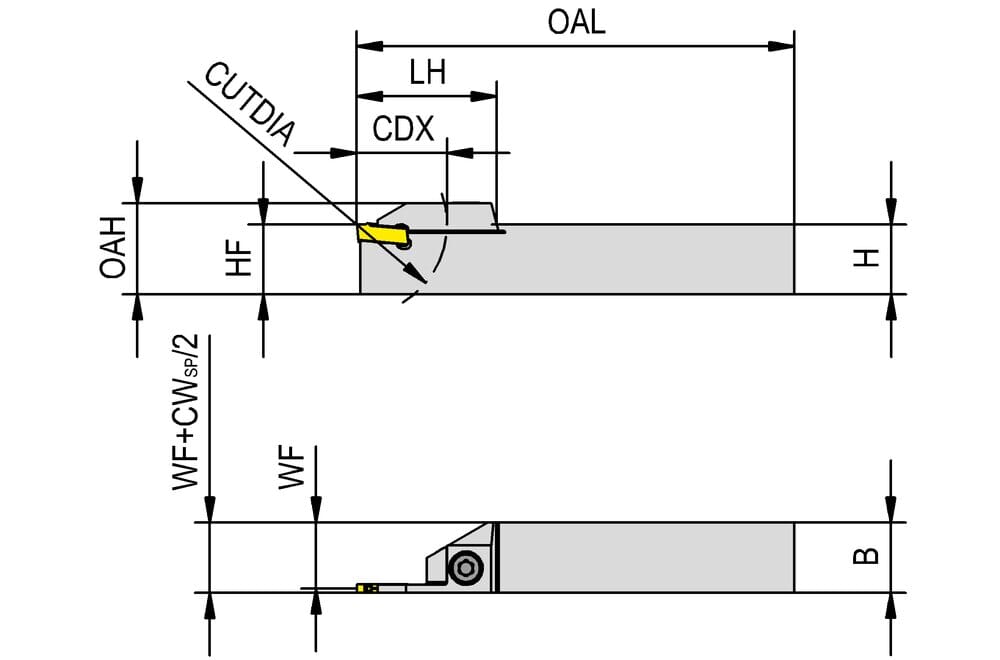

Shank width (b)
25 mm
Head length top (including cutting edge) (l3)
40 mm
Adjustment dimension (formula) (f)
f1+w/2
Peak height (h1)
25 mm
Maximum workpiece diameter (Dmax)
50 mm
Maximum insertion depth (tmax)
25 mm
Head height (HK)
31 mm
Shank height (h)
25 mm
Size (Größe)
3
Total length (including cutting insert) (l1)
150 mm
Adjustment dimension cutting center (f1)
23.85 mm
