RNK100.0842.Y.34.4.84.IK

Cartridge

Part number RNK1000842Y34484IK

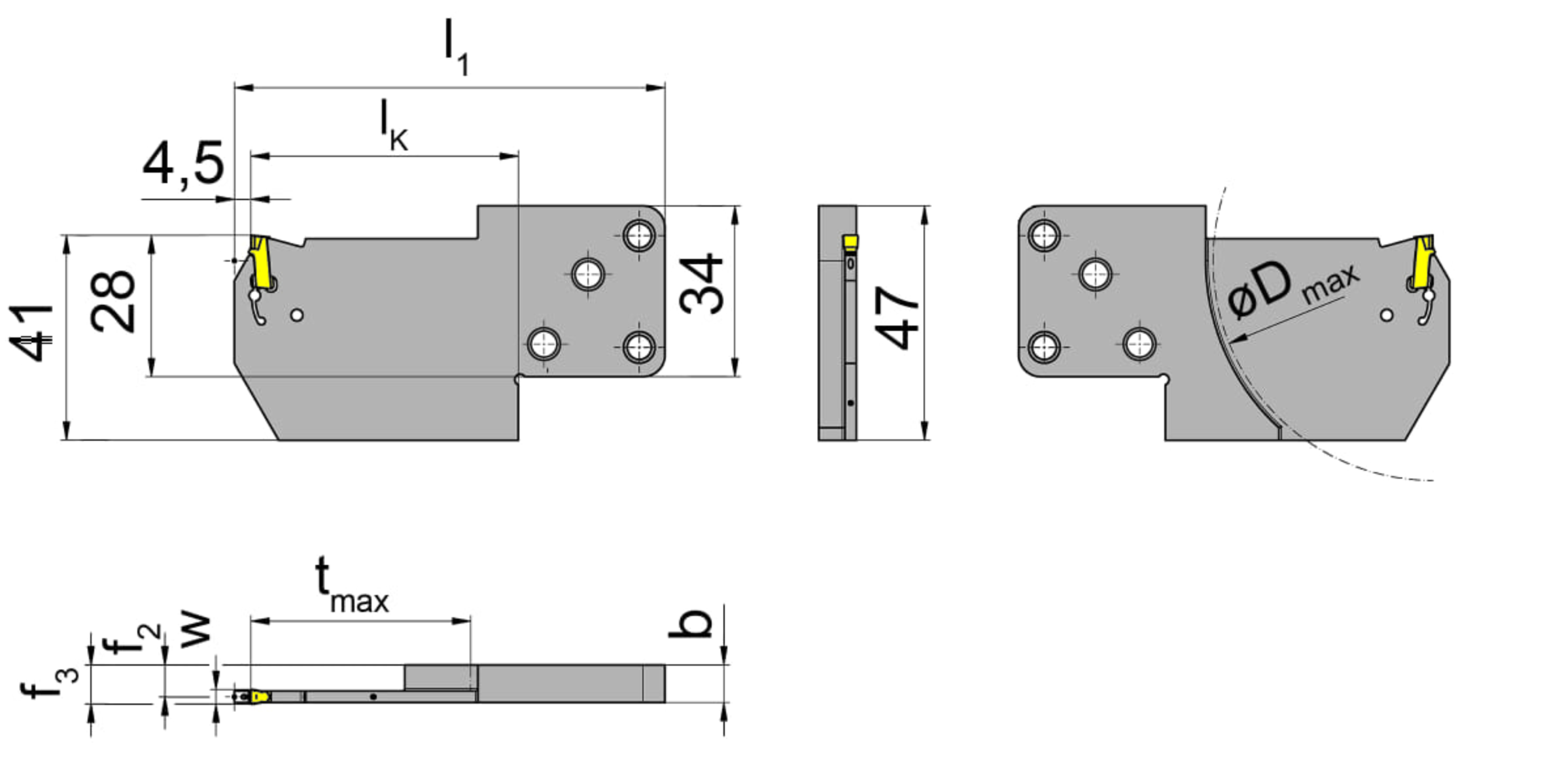

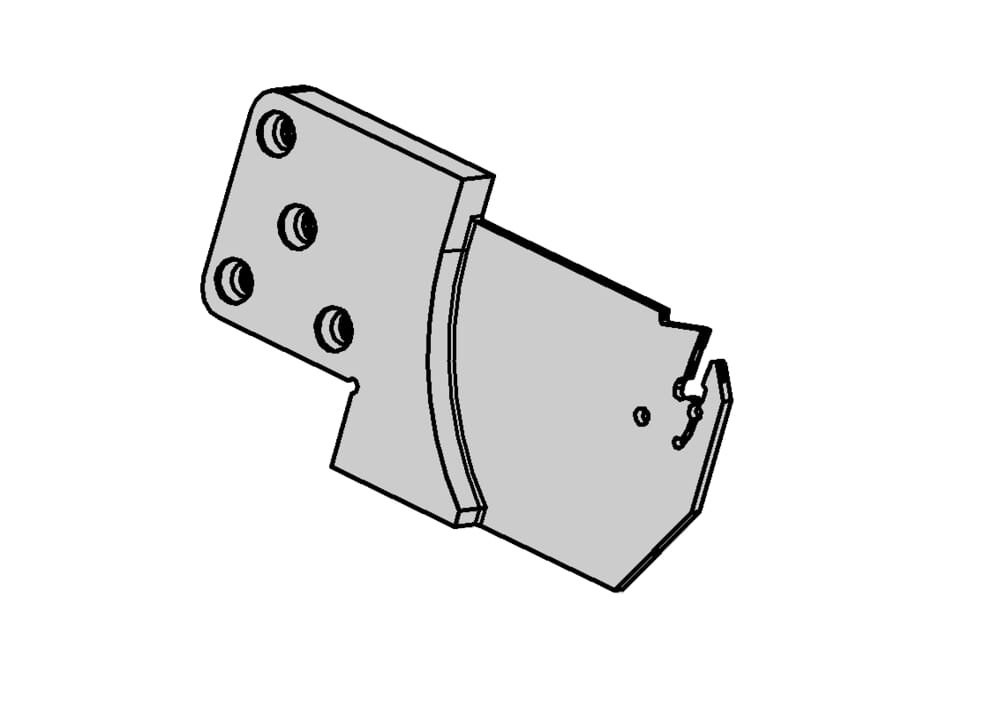

HORN Cartridge RNK100.0842.Y.34.4.84.IK for Turning

Width of groove (w)

4 mm

Katalog_CCTMS

842001;842002

ISO_CCTMS

HORN84200193$$;HORN84200293$$

DIN_CCTMS

HORN-84200193;HORN-84200293

Katalog_CCTWS

100048

DIN_CCTWS

HORN-100040058N

ISO_CCTWS

HORN100040058N$$$$$

Adjustment dimension of system cassette formula (f3)

f2+w/2

eclass-shortcut

21-02-90-90

Maximum workpiece diameter (Dmax)

68 mm

Maximum depth of groove (tmax)

34 mm

Length of unit cassette to cutting edge (lK)

46 mm

Cassette thickness (b)

10.55 mm

Total length (including cutting insert) (l1)

86.5 mm

adjustment-dimension-of-system-cassette-met

10.7 mm

Adjustment dimension cutting center (f2)

8.7 mm
