SH117.1416.E1.08
Toolholder
Part number SH1171416E108

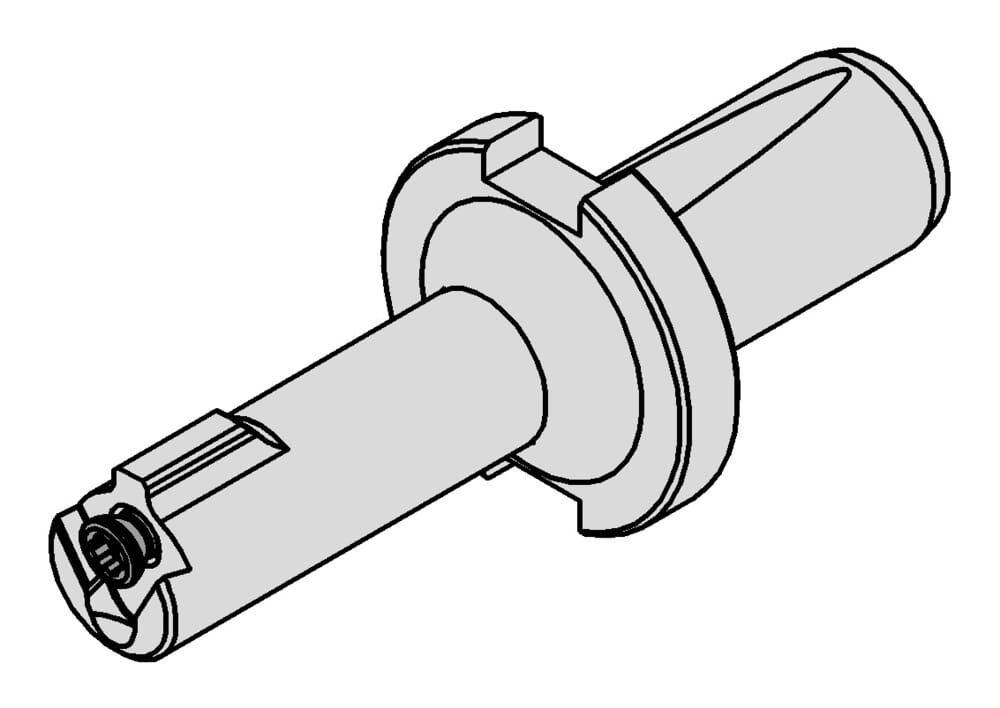

HORN Toolholder SH117.1416.E1.08 for Broaching
Please note:Technical instructions
Clamping, shank diameter (d)
16 mm
Form (Form)
F
Katalog_CCTMS
Benz
Katalog_CCTWS
117F805
DIN_CCTWS
HORN-117F81050N
ISOCCTWS
HORN117F81050N$$$$$
eclass-shortcut
21-18-10-90
Minimum drilling diameter (Dmin)
14 mm
Length from bore (l)
46 mm
Total length (including cutting insert) (l1)
76 mm
Adjustment dimension center to cutting edge (f1)
9.6 mm
Outcropping, neck, working length (l2)
35 mm
| Downloads | |
|---|---|
| SH117_1416_E1_08-DXF.DXF | Download |
| SH117_1416_E1_08-STP.STP | Download |
| SH117_1416_E1_08-ISO.XML | Download |
| SH117_1416_E1_08-DIN.XML | Download |
| Download all files | |
