SH117.4032.2.16.IK
Broaching tool holder coolant through
Part number SH1174032216IK

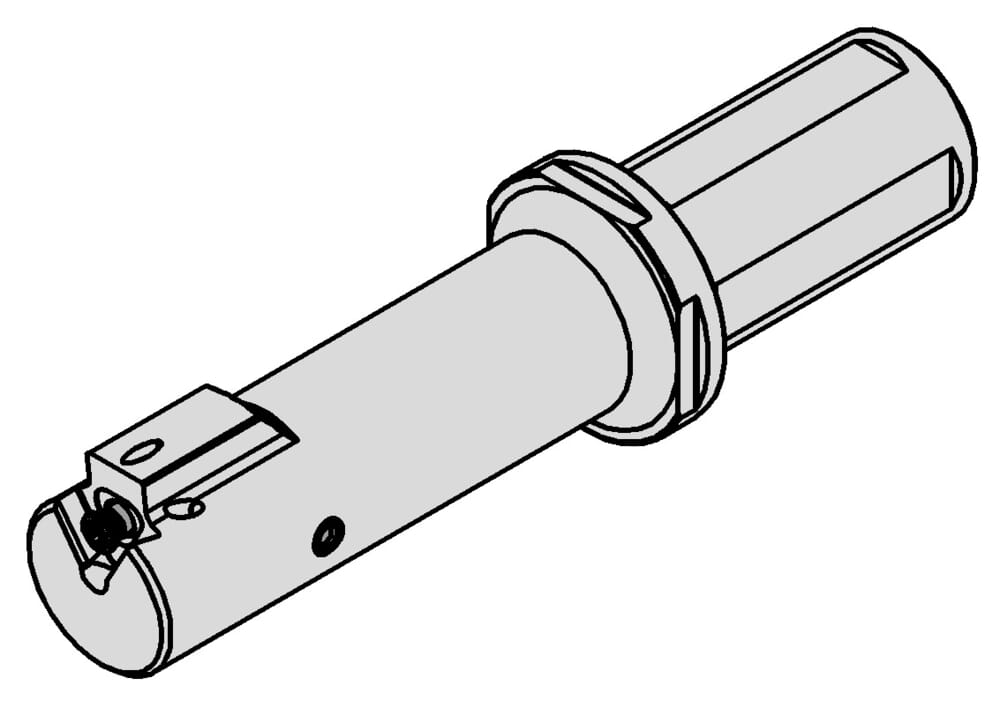

HORN Broaching tool holder coolant through SH117.4032.2.16.IK for Broaching
Please note:Technical instructions
Clamping, shank diameter (d)
32 mm
Form (Form)
E
ISOCCTMS
ZYL24G3200$$$$
DIN_CCTMS
ZYL03202415
Katalog_CCTWS
117E605
DIN_CCTWS
HORN-117E61050N
ISOCCTWS
HORN117E61050N$$$$$
eclass-shortcut
21-18-10-90
Minimum drilling diameter (Dmin)
40 mm
Length from bore (l)
88 mm
Height clamping surface(s) (h)
30 mm
Total length (including cutting insert) (l1)
148 mm
Adjustment dimension center to cutting edge (f1)
21.5 mm
Outcropping, neck, working length (l2)
75 mm
| Downloads | |
|---|---|
| SH117_4032_2_16_IK-DXF.DXF | Download |
| SH117_4032_2_16_IK-STP.STP | Download |
| SH117_4032_2_16_IK-ISO.XML | Download |
| SH117_4032_2_16_IK-DIN.XML | Download |
| Download all files | |
