628.0160.2.00 TI25
Insert
Part number 6280160200TI25

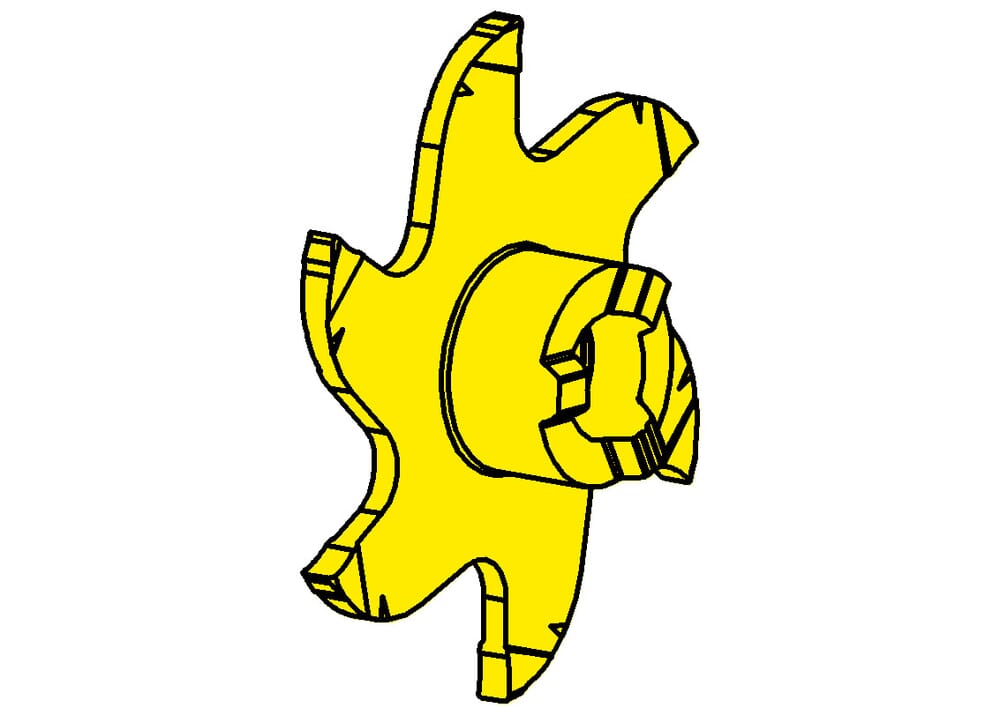

HORN Insert 628.0160.2.00 TI25 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
28 mm
Number of teeth (Z)
6 St.
ISO_SSC
HORN328090$84R$$$$$
Katalog_SSC
328090R
plating-seat-size
1
Width of groove (w)
1.6 mm
Maximum milling depth/ depth of groove (tmax)
9.3 mm
Cutting insert thickness, setting length complete (s)
6.1 mm
Corner radius (r)
0.2 mm
| Downloads | |
|---|---|
| 628_0160_2_00_TI25-ISO.XML | Download |
| 628_0160_2_00_TI25-DXF.DXF | Download |
| 628_0160_2_00_TI25-STP.STP | Download |
| 628_0160_2_00_TI25-DIN.XML | Download |
| Download all files | |
