H100.3202.02
Toolholders
Part number H100320202

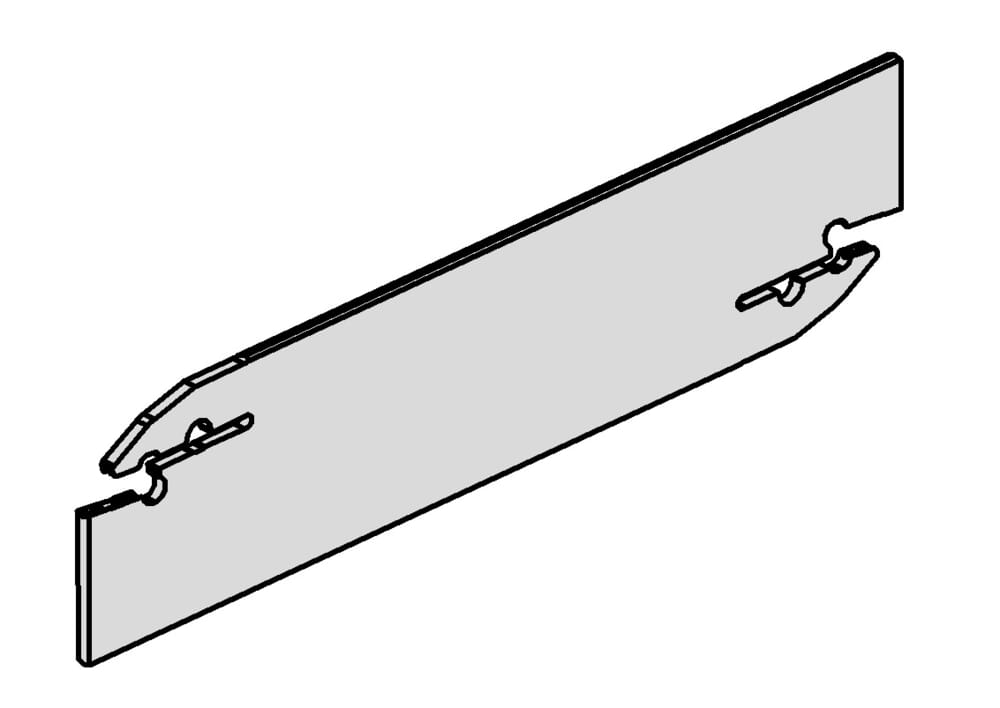

HORN Toolholders H100.3202.02 for Turning
Please note:Technical instructions
Katalog_CCTWS
100028
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
2
ISO_CCTMS
PMU01C0320$$$$
DIN_CCTMS
PMU03200105

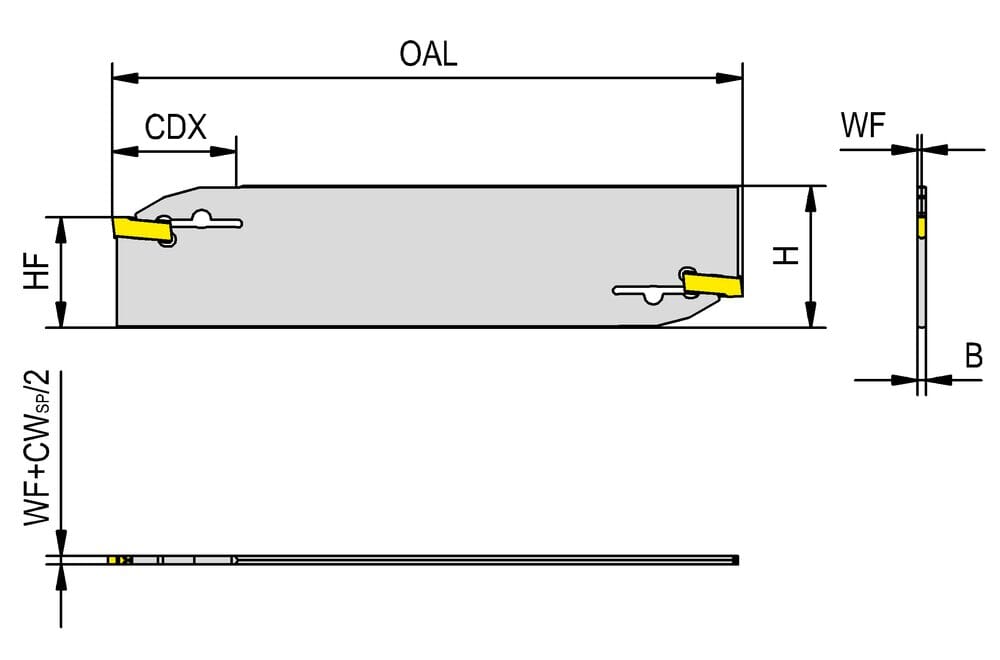

Width / thickness sword (b)
1.9 mm
DIN_CCTWS
HORN-100020058N
ISO_CCTWS
HORN100020058N$$$$$
clamping-range-max-met
2.8 mm
Peak height (h1)
24.8 mm
Maximum insertion depth (tmax)
50 mm
Head height (h)
32 mm
Total length (including cutting insert) (l1)
150 mm
Adjustment dimension (f1)
0.95 mm
| Downloads | |
|---|---|
| H100_3202_02.DXF | Download |
| H100_3202_02-STP.STP | Download |
| H100_3202_02-ISO.XML | Download |
| H100_3202_02-DIN.XML | Download |
| Download all files | |
