R105.0010.2.6 TH35
Insert
Part number R105001026TH35

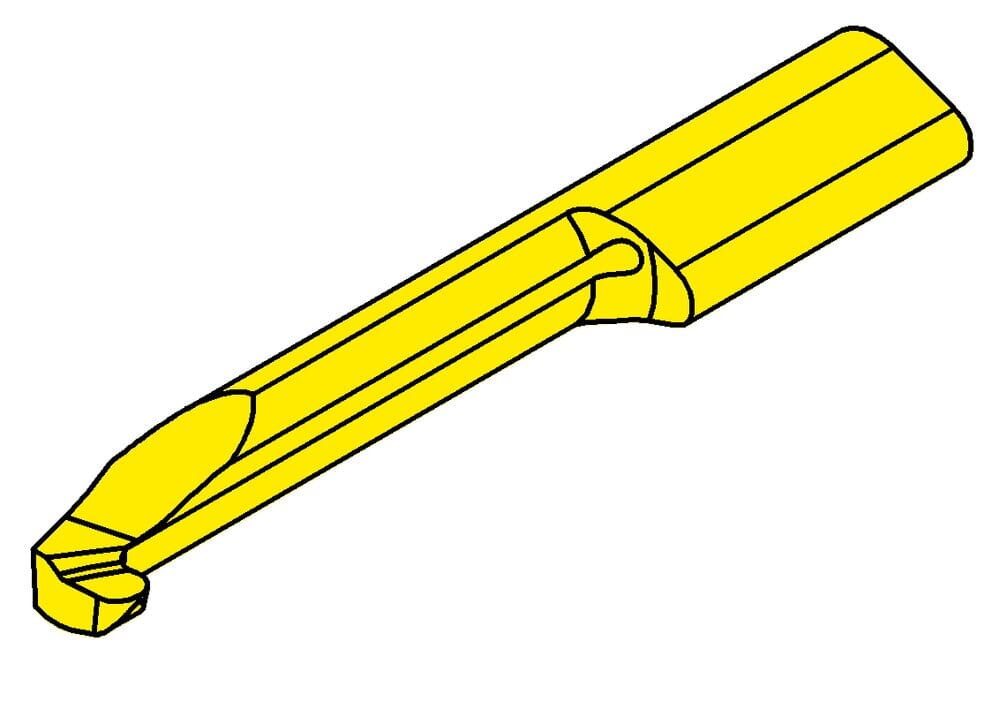

HORN Insert R105.0010.2.6 TH35 for Turning
Please note:Technical instructions
Katalog_SSC
105125
Smallest bore diameter (Dmin)
6 mm
Total length (l5)
30 mm
Setting range radial (f)
3.3 mm
Neck diameter (d)
3.7 mm
Width of groove (w)
2 mm
Neck length (l2)
15 mm
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
7 mm
eclass-shortcut
21-18-20-11
Full radius (r)
1 mm
Maximum depth of groove (tmax)
1.8 mm
Head size (a)
5.7 mm
