306.1020.01 TI25
Insert
Part number 306102001TI25

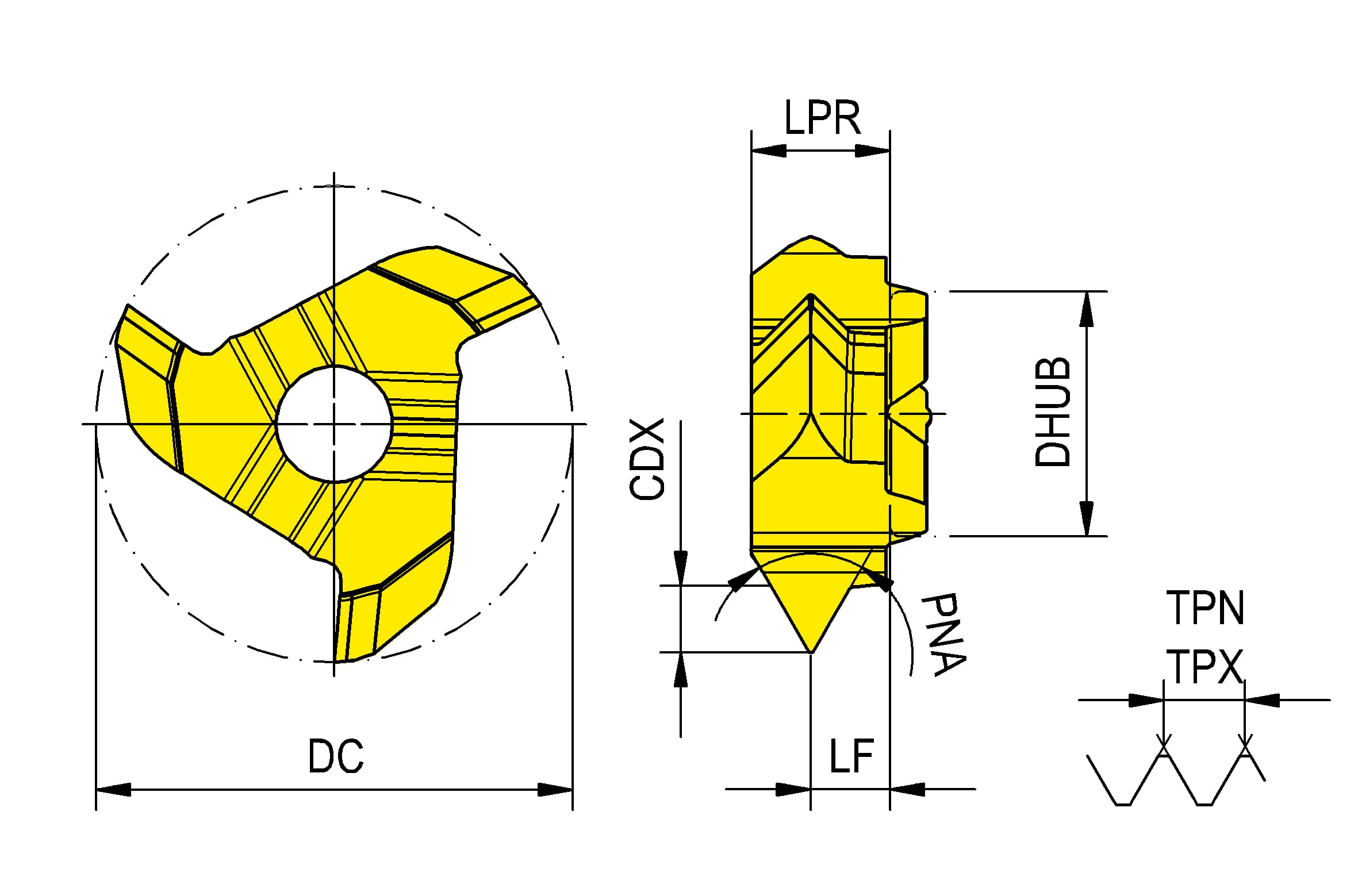

HORN Insert 306.1020.01 TI25 for Gewinden
Please note:Technical instructions
Profile included angle (PNA)
60 °
Thred pitch maximum (TPX)
2 mm
Thread pitch minimum (TPN)
2 mm
Protruding length (LPR)
3.4 mm
Functional length (LF)
2.2 mm
hub diameter (DHUB)
6 mm
Cutting diameter (DC)
10 mm
Cutting depth maximum (CDX)
1.3 mm
| Downloads | |
|---|---|
| 306_1020_01_TI25-ISO.XML | Download |
| 306_1020_01_TI25-DXF.DXF | Download |
| 306_1020_01_TI25-STP.STP | Download |
| 306_1020_01_TI25-DIN.XML | Download |
